Description
UtiliPi
Github : https://github.com/NathanB49/Utilipi
Openhardware.io : https://www.openhardware.io/view/618/UtiliPi
Design Drawing

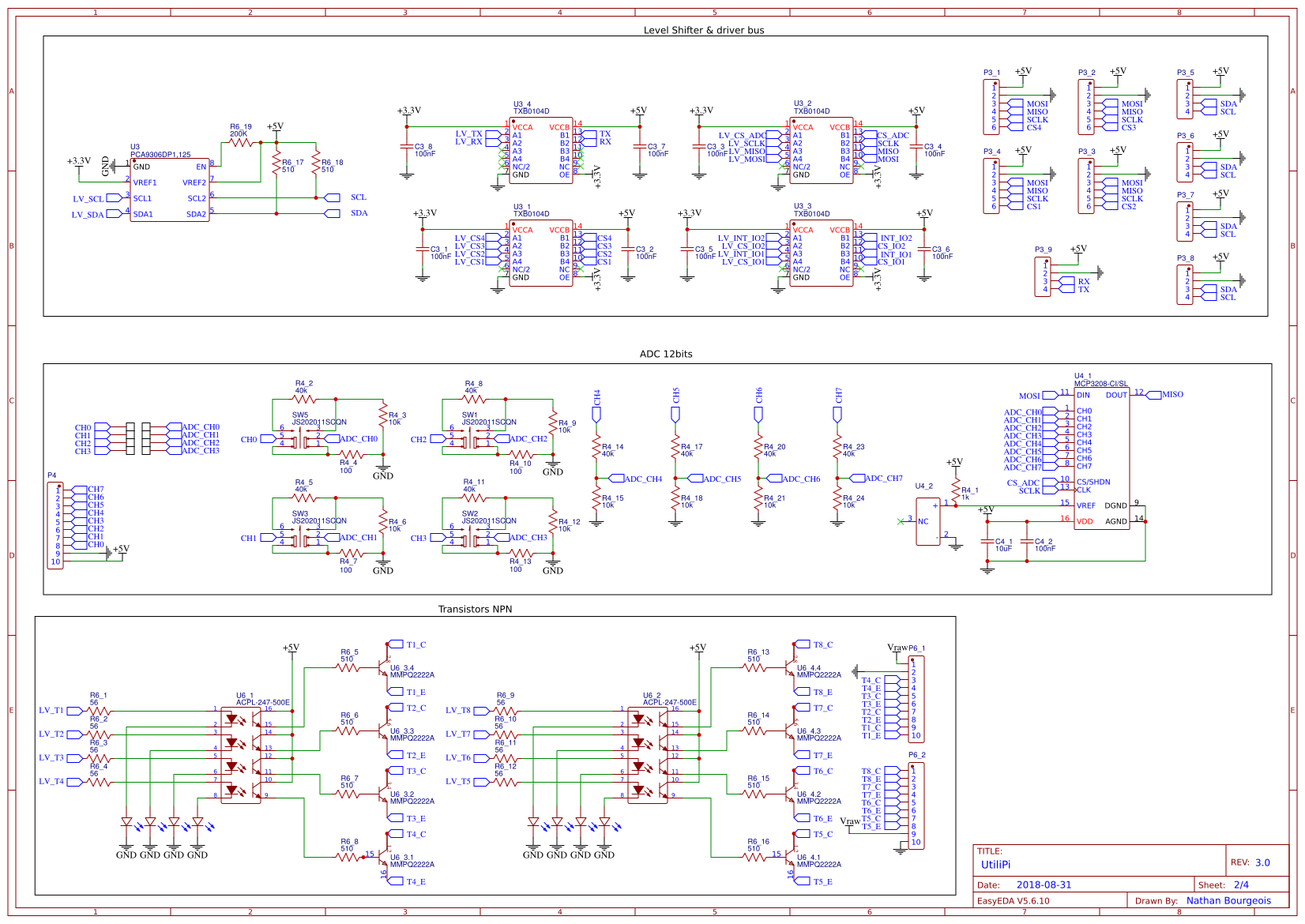

schematic diagram
（
1
/
）
-
Périphériques
Open in Editor -
Micro controleur
Open in Editor -
IO_EXTENDER
Open in Editor -
Solder Jumper
Open in Editor
PCB
（
1
/
）
Empty
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | RS PRO 6 Contacts | P3_1,P3_2,P3_3,P3_4 | RS PRO 6 CONTACTS | 4 |
| 2 | solderpad x2 | U5,U9,U10,U14 | SOLDERPAD X2 | 4 |
| 3 | RS PRO 4 Contacts | P3_5,P3_6,P3_7,P3_8,P3_9 | RS PRO 4 CONTACTS | 5 |
| 4 | ACPL-247-500E | U6_1,U6_2,U4,U7,U12,U13 | SOP-16 | 6 |
| 5 | MCP3208-CI/SL | U4_1 | SOIC-16_150MIL | 1 |
| 6 | TXB0104D | U3_2,U3_3,U3_1,U3_4 | SOIC-14_150MIL | 4 |
| 7 | LM4040AIM3-4.1/NOPB | U4_2 | SOT-23(SOT-23-3) | 1 |
| 8 | 56 | R6_4,R6_3,R6_2,R6_1,R6_12,R6_11,R6_10,R6_9 | 0805 | 8 |
| 9 | 510 | R6_5,R6_6,R6_7,R6_8,R6_13,R6_14,R6_15,R6_16,R6_17,R6_18 | 0805 | 10 |
| 10 | 200K | R6_19 | 0805 | 1 |
| 11 | PCA9306DP1,125 | U3 | PCA9306DP1_TSSOP8 | 1 |
| 12 | 100nF | C3_3,C4_2,C3_2,C3_1,C3_5,C3_4,C3_6,C3_7,C3_8,C7_2,C7_3,C7_5,C5_2,C5_4 | 0805 | 14 |
| 13 | 10uF | C4_1 | 0805 | 1 |
| 14 | JS202011SCQN | SW5,SW1,SW2,SW3 | JS202011SCQN_MODIFIED | 4 |
| 15 | LED-Blue(0805) | D6_1,D6_2,D6_4,D6_3,D6_5,D6_6,D6_8,D6_7,D1_2,D7_2,D7_1 | LED-0805 | 11 |
| 16 | RS PRO 10 Contacts | P6_1,P6_2,P4,P5_3,P5_4,P5_7,P5_8 | RS PRO 10 CONTACTS | 7 |
| 17 | 100 | R4_4,R4_7,R4_10,R4_13 | 0805 | 4 |
| 18 | 40k | R4_2,R4_5,R4_8,R4_11,R4_14,R4_17,R4_20,R4_23 | 0805 | 8 |
| 19 | 10k | R4_3,R4_6,R4_9,R4_12,R4_15,R4_18,R4_21,R4_24,R10,R11,R12,R13 | 0805 | 12 |
| 20 | 1k | R4_1,R7_3,R7_4,R7_2,R7_1,R1_5 | 0805 | 6 |
| 21 | MMPQ2222A | U6_3,U6_4 | SOIC16N | 2 |
| 22 | PTS810SJK250SMTRLFS | SW7_1,SW7_2 | PTS810SJK250SMTRLFS | 2 |
| 23 | Header-Male-2.54_1x4 | H7_1 | DIP-1X4P-2.54MM-M | 1 |
| 24 | Header-Male-2.54_1x4 | H7_2 | POGO PAD | 1 |
| 25 | RS PRO 2 Contacts | P1 | RS PRO 2 CONTACTS | 1 |
| 26 | OKI-78SR-5/1.5-W36-C | PS1 | OKI-78SR-5/1.5-W36-C | 1 |
| 27 | Ebyte E73 nRF52832 Module | U2 | E73-2G4M04S1B | 1 |
| 28 | MCP1700T-3302E/TT | U1 | SOT-23(SOT-23-3) | 1 |
| 29 | 64900001039 | U11 | 649-SERIES-HOLDER | 1 |
| 30 | JUMPER | JP1 | JUMPER2 | 1 |
| 31 | 0603SFV300F/32-2 | F1 | C0603 | 1 |
| 32 | 1µF | C7_1,C7_4 | 0805 | 2 |
| 33 | RASPBERRYPI-B+-GPIO | P2_1 | 2X20-SHROUDED | 1 |
| 34 | MCP23S17T-E/SO | U6,U8 | SOIC-28_300MIL | 2 |
| 35 | Solder Bridge 3-Way | J20,J21,J22,J26,J27,J28,J29,J30,J31,J32,J33,J36,J37,J38,J41,J42,J43,J44,J67,J68,J69,J70,J39,J1 | SOLDER BRIDGE 3-WAY | 24 |
