Std edition MOSFET firing
Profile：MOSFET firing
License: CC-BY-NC-SA 3.0
Project source: Cloned from RCS Firing
Description
Activating MOSFETs as per signal from a microcontroller.
Design Drawing
schematic diagram
（
1
/
）
PCB
（
1
/
）
-

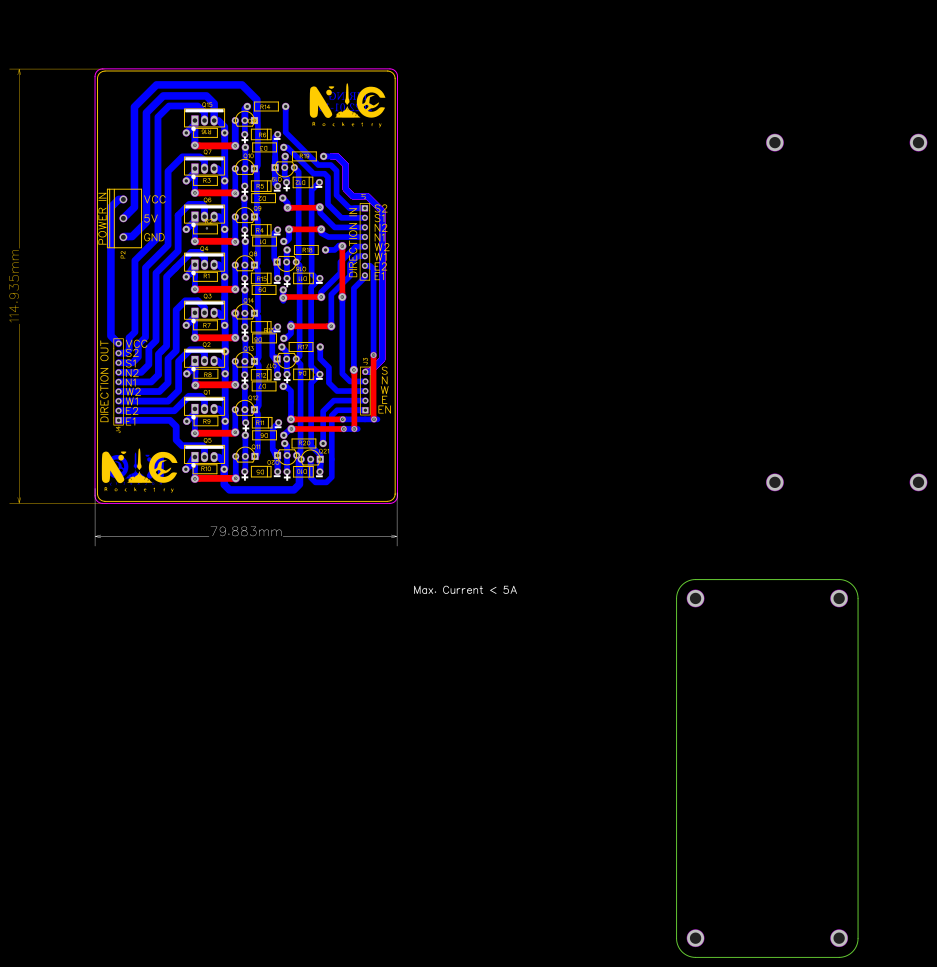

PCB_RCS Firing 1 copy
Open in editor -
PCB_RCS Firing 3 copy
Open in editor -
PCB_RCS Firing 2 copy
Open in editor -
NEW_PCB copy
Open in editor
Empty
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 1N4007 | D1,D2,D3,D4,D5,D6,D7,D8,D9,D10,D11,D12 | DO-41_BD2.4-L4.7-P8.70-D0.9-RD | 12 |
| 2 | DIRECTION INPUT | J1 | HDR-M-2.54_1X8 | 1 |
| 3 | DIRECTION ENABLE | J3 | HDR-M-2.54_1X5 | 1 |
| 4 | DIRECTION OUTPUT | J4 | HDR-M-2.54_1X9 | 1 |
| 5 | Power IN | P2 | CONN-TH_3P-P5.08 | 1 |
| 6 | IRFZ44VZPBF | Q1,Q2,Q3,Q4,Q5,Q6,Q7,Q15 | TO-220-3_L10.0-W4.5-P2.54-L | 8 |
| 7 | 2N2222A | Q8,Q9,Q10,Q11,Q12,Q13,Q14,Q16,Q17,Q18,Q19,Q20,Q21 | TO-92-3_L4.8-W3.7-P2.54-R | 13 |
| 8 | 1k | R1,R2,R3,R4,R5,R6,R7,R8,R9,R10,R11,R12,R13,R14,R15,R16,R17,R18,R19,R20 | R_AXIAL-0.4 | 20 |
