STD Fremdeinsicht V8
License: Public Domain
Mode: Editors' pick
Cloned from Sattelliet V14 Nach
- 0
Update time：
2021-08-22 18:58:27
Creation time：
2021-07-26 08:54:10
Description
Bitte eines der Untenstehende Dokumente wählen um den jeweiligen Schaltplan bzw. Layout einzusehen.
Design Drawing

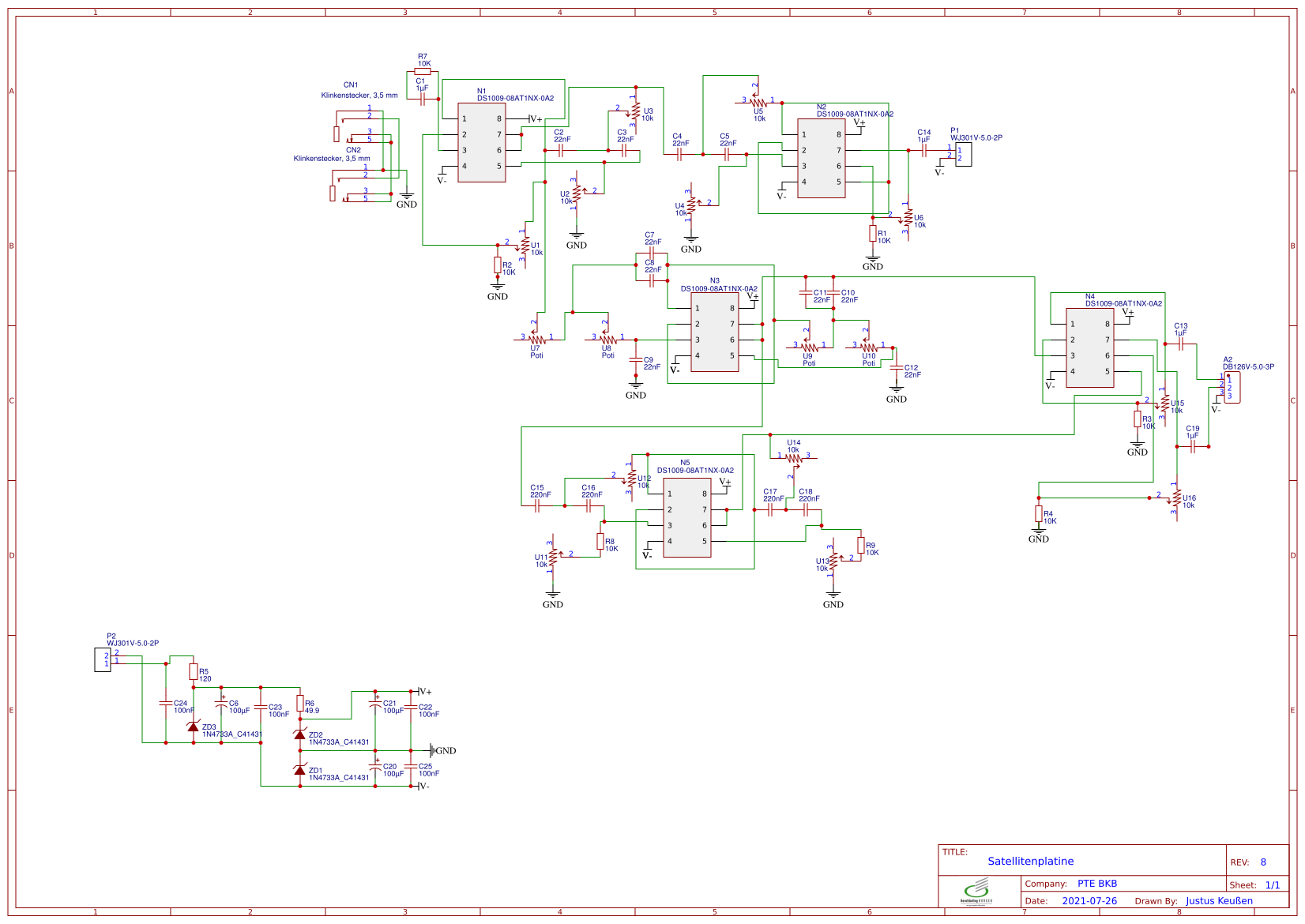

schematic diagram
（
1
/
）
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | DB126V-5.0-3P | A2 | CONN-TH_3P-P5.00_DB126V-5.0-3P | 1 |
| 2 | 1µF | C1,C13,C14,C19 | CAP-TH_L7.2-W5.0-P5.00-D1.0 | 4 |
| 3 | 22nF | C2,C3,C4,C5,C7,C8,C9,C10,C11,C12 | CAPACITOR | 10 |
| 4 | 100µF | C6,C20,C21 | CAP-TH_BD6.3-P2.50-D1.0-FD | 3 |
| 5 | 220nF | C15,C16,C17,C18 | CAPACITOR | 4 |
| 6 | 100nF | C22,C23,C24,C25 | CAPACITOR | 4 |
| 7 | Klinkenstecker, 3,5 mm | CN1,CN2 | AUX-BUCHSE | 2 |
| 8 | DS1009-08AT1NX-0A2 | N1,N2,N3,N4,N5 | DIP-8_L10.0-W6.5-P2.54-LS7.6-BL | 5 |
| 9 | WJ301V-5.0-2P | P1,P2 | CONN-TH_2P-P5.00_WJ301V-5.00-2P | 2 |
| 10 | 10K | R1 | WIDERSTAND_VERT_BIG | 1 |
| 11 | 10K | R2,R3,R4,R7,R8,R9 | WIDERSTAND_VERT | 6 |
| 12 | 120 | R5 | WIDERSTAND_VERT_BIG | 1 |
| 13 | 49.9 | R6 | WIDERSTAND_VERT | 1 |
| 14 | 10k | U1,U2,U3,U4,U5,U6,U11,U12,U13,U14,U15,U16 | TRIMMER | 12 |
| 15 | Poti | U7,U8,U9,U10 | TRIMMER | 4 |
| 16 | 1N4733A_C41431 | ZD1,ZD2,ZD3 | DO-41_BD2.8-L4.2-P8.00-D0.7-FD | 3 |
