STD Lisa GALSCSI Card
License: MIT
Mode: Editors' pick

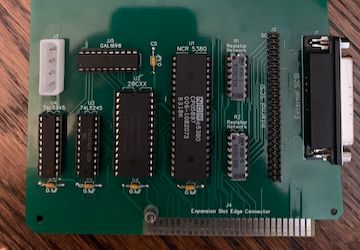

This is a GAL-based alternative to the Apple Lisa Sun Remarketing SCSI card. For more information, check out the project on GitHub.
Power, NCR 5380, EPROM, and Bus Transceivers
Open in EditorAddress Decode Logic
Open in EditorSCSI Ports and Terminators
Open in EditorID | Name | Designator | Footprint | Quantity |
---|---|---|---|---|
1 | 0.1uF Capacitor | C1,C2,C3,C4,C5 | CUSTOMSCSI_CAPACITOR | 5 |
2 | Drive Power Connector | J3 | CUSTOMSCSI_MOLEX | 1 |
3 | Lisa Expansion Card Edge Connector | J4 | LISA_EXPANSION_EDGE_CONENCTOR | 1 |
4 | NCR 5380 | U1 | CUSTOMSCSI_5380 | 1 |
5 | F-RAM | U2 | CUSTOMSCSI_28CXX | 1 |
6 | 74LS245 | U3,U4 | CUSTOMSCSI_LS245 | 2 |
7 | Lisa Expansion Card Debug Header | J5 | CUSTOMSCSI_DEBUG_HEADER | 1 |
8 | GAL16V8 | U5 | CUSTOMSCSI_GAL16V8 | 1 |
9 | DB25 SCSI Connector | J1 | CUSTOMSCSI_DB25 | 1 |
10 | 50 Pin SCSI Header | J2 | CUSTOMSCSI_50P_CONNECTOR | 1 |
11 | Termination Resistor Array | R1,R2 | CUSTOMSCSI_RESISTOR_NETWORK | 2 |
