STD Minecraft Tourch LED Power2
License: GPL 3.0
Mode: Editors' pick
- 0
Update time：
2022-10-04 14:47:59
Creation time：
2021-07-28 16:46:37
Description

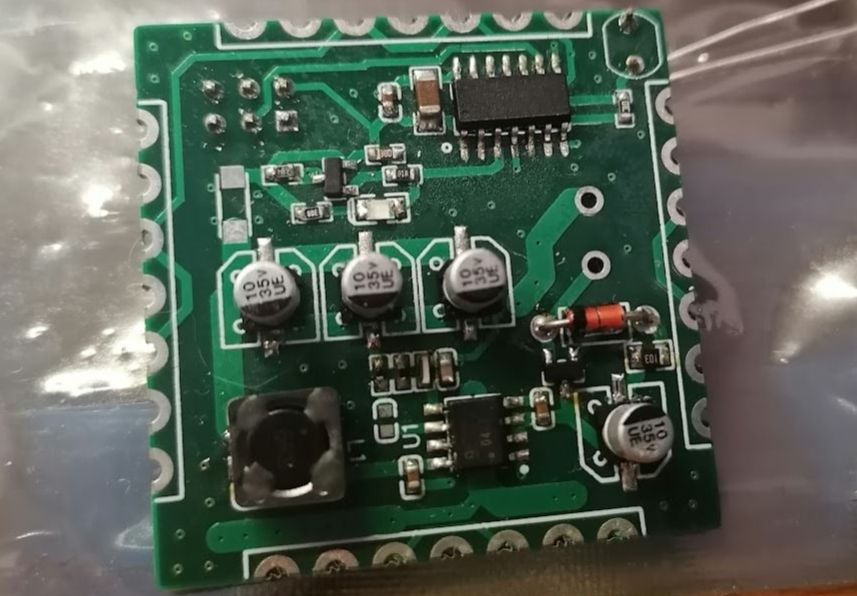

Power supply and driver for WS2812B LEDs
MCU is ATTINY84 or -44 internal clock
Volt input:max 7 - 25V
max current 1A
Controls LEDs from one LDR
MCU is ATTINY84 or -44 internal clock
Volt input:max 7 - 25V
max current 1A
Controls LEDs from one LDR
Design Drawing
schematic diagram
（
1
/
）
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 10u | C1,C3,C8,C9 | CAP-6.3*10.2 | 4 |
| 2 | 10uF | C2 | C1206 | 1 |
| 3 | 100nF | C4,C5,CBOOT1 | C0603 | 3 |
| 4 | 360pF | COMPC2 | C0603 | 1 |
| 5 | 82k | COMPR3,FBR2 | R0603 | 2 |
| 6 | 1N4733A | D2 | DO-41 | 1 |
| 7 | 13pF | FBC1 | C0603 | 1 |
| 8 | 430k | FBR1 | R0603 | 1 |
| 9 | ICSPin | ISPINN1 | HDR2X3 | 1 |
| 10 | 6.8uH | L1 | SRF0703 | 1 |
| 11 | HCB4516KF-181T30 | L2 | BEAD-SMD_L4.5-W1.6 | 1 |
| 12 | LED Green | LED4 | LED0805_GREEN | 1 |
| 13 | Power | P1 | CON-5MM | 1 |
| 14 | SI2305 | Q2 | SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BR | 1 |
| 15 | CJ2305 | Q4 | SOT-23(SOT-23-3) | 1 |
| 16 | LDR07 | R1 | RESISTOR_LDR_5.1X4.3_RM3.4 | 1 |
| 17 | 10K | R2 | R0603 | 1 |
| 18 | 10k | R3 | R0805 | 1 |
| 19 | 3K | R7 | R0603 | 1 |
| 20 | 100 | R11 | R0603 | 1 |
| 21 | 220k | R12 | R0603 | 1 |
| 22 | 600k | R15 | R0603 | 1 |
| 23 | BD9E102FJ | U1 | HTSOP-J8_L4.9-W3.9-P1.27-LS6.0-BL-EP | 1 |
| 24 | ATTINY84A-SSFR | U2 | SOIC-14_L8.7-W3.9-P1.27-LS6.0-BL | 1 |
