Std edition battery mangement syestem
Profile：HDNFNDU URET NGAKKJ G AL
License: TAPR Open Hardware License
Description
hnfnvshfsdn fkjfsdjf gfs
Design Drawing

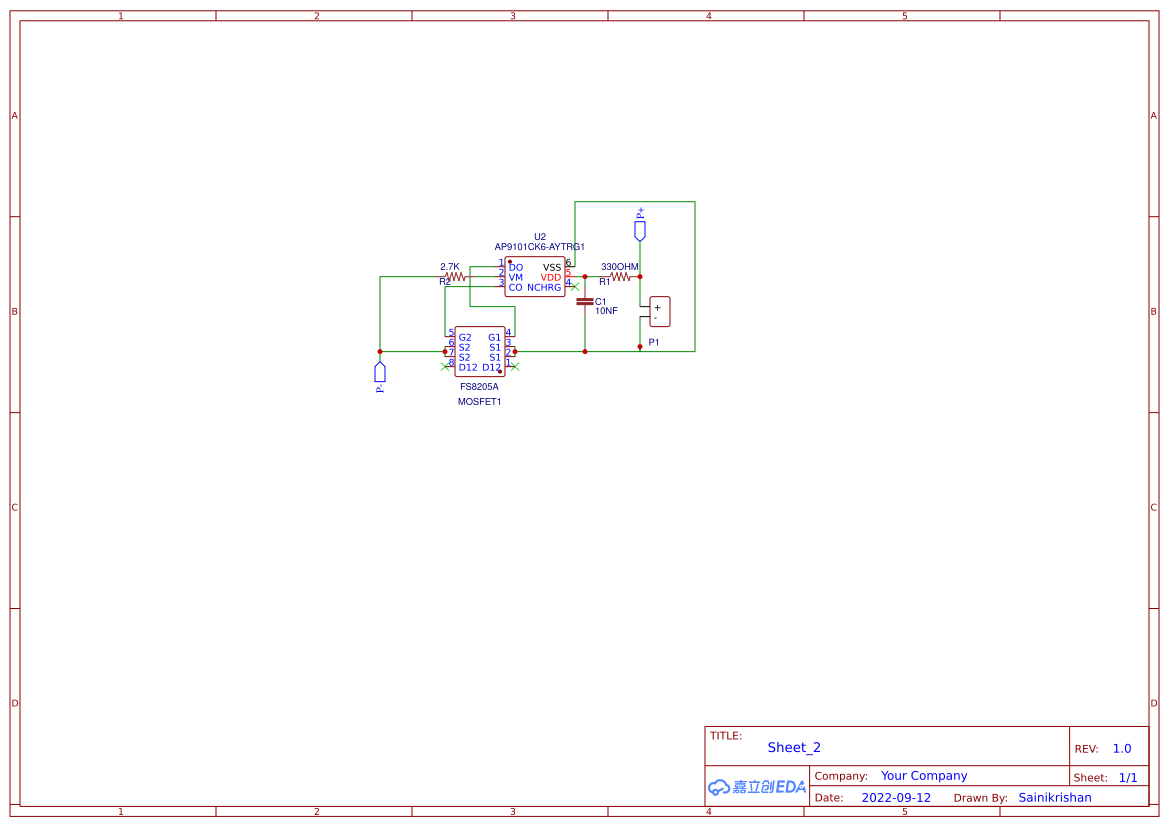

schematic diagram
（
1
/
）
PCB
（
1
/
）
Empty
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 10NF | C1 | 0603-CAP | 1 |
| 2 | FS8205A | MOSFET1 | TSSOP-8_L4.4-W3.0-P0.65-LS6.4-BL-2 | 1 |
| 3 | CONN-TH_2P-P5.00 | P1 | CONN-TH_2P-P5.00 | 1 |
| 4 | 330OHM | R1 | 0603-RES | 1 |
| 5 | 2.7K | R2 | 0603-RES | 1 |
| 6 | AP9101CK6-AYTRG1 | U2 | SOT-26_L3.0-W1.6-P0.95-LS2.8-BL | 1 |
| 7 | TP4056_C725790 | 4056 | ESOP-8_L4.9-W3.9-P1.27-LS6.0-BL-EP | 1 |
| 8 | 10uF | C2,C7 | C0603 | 2 |
| 9 | P3-1204RBTS2-1.5T-A | LED2 | LED-SMD_3P-L3.2-W1.5_TZ-P4-1204RYGTS1-1.5TA | 1 |
| 10 | MK-12D18-G040 | ON/OFF1 | SW-TH_MK-12D18-G040 | 1 |
| 11 | 1K | R3,R4 | R0603 | 2 |
| 12 | 2kΩ | R13 | R0603 | 1 |
| 13 | TYPE-C-31-M-16 | USB2 | TYPE-C-SMD_TYPE-C-31-M-16 | 1 |
| 14 | 0.1uF | C3 | 0603-CAP | 1 |
| 15 | HC-1.25-4AW | CN1 | CONN-TH_4P-P1.25_HCTL_HC-1.25-4AW | 1 |
| 16 | 10K | R14,R15 | 0603-RES | 2 |
| 17 | MAX17048 | U3 | DFN-8 | 1 |
