Std Editionmole

Profile:PCB of Whack a mole game

License:

Published Time:2022-01-16 18:32:08
  • 122
  • 0
  • 0
Description

It is the pcb of whack a mole game

Documents

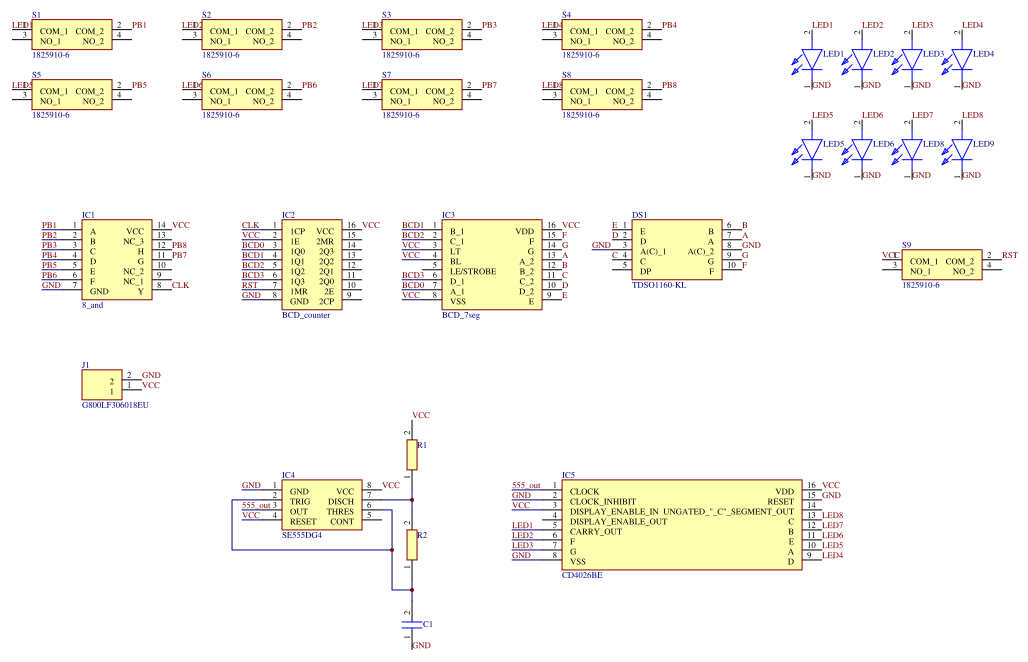

mole_sch.SchDoc

Open in editor
ID Name Designator Footprint Quantity
1 10u C2 C0603 1
2 8_and IC1 SOIC127P600X175-14N 1
3 SE555DG4 IC4 SOIC127P600X175-8N 1
4 K2-3.6×6.1_SMD KEY1,KEY2,KEY3,KEY4,KEY5,KEY6,KEY7,KEY8,KEY9 KEY-SMD_2P-L6.2-W3.6-LS8.0 9
5 LED-0603_R LED7,LED10,LED11,LED12,LED13,LED14,LED15,LED16 LED0603_RED 8
6 CONN-TH_2P-P5.00 P1 CONN-TH_2P-P5.00 1
7 10k R3 R0603 1
8 47k R4 R0603 1
9 SEG-TH_0.56×1_Cathode SEG1 LED-SEG-TH_10P-L12.6-W19.0-P2.54-S15.24-BL 1
10 CD4026BE U1 DIP-16_L20.3-W10.2-P2.54-LS10.2-BL 1
11 CD4511BE_C507153 U2 DIP-16_L19.8-W6.5-P2.54-LS7.6-BL 1
12 HEF4518BT,653 U3 SOIC-16_L9.9-W3.9-P1.27-LS6.0-BL 1
