Completedtic tac toe
STDtic tac toe
206
0
0
0
Mode:Full
License
：GPL 3.0
Creation time:2024-08-20 12:37:55Update time:2024-10-24 11:04:40
Description
JLCPCB 1-20 Layer PCB from $2, Sign up to Get $60 Coupons here: https://jlcpcb.com/?from=MrI

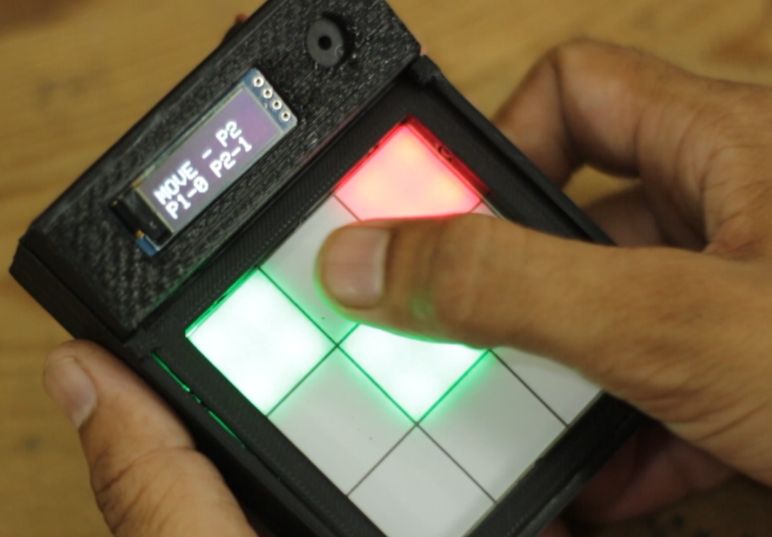

Hello friends in this video I have made a mini tic tac toe game with touch screen.
I have used IR sensors to detect the touch and WS2812B addressable LED to glow the respective box. I have also used buzzer for more dramatic effect it will play different sounds when player wins, match draw, and a welcome tone.
I have also placed a small 0.91 oled display to display the move of players and point of both players.
Design Drawing
The preview image was not generated, please save it again in the editor.BOM
