CompletedSC733 v1.0 Prototype for RCBus
STDSC733 v1.0 Prototype for RCBus
80
0
0
0
Mode:Full
License
：Public Domain
Cloned fromz SC711 v1.0 Prototype for RCBus copy
Creation time:2024-04-23 19:44:42Update time:2024-05-21 20:43:44
Description

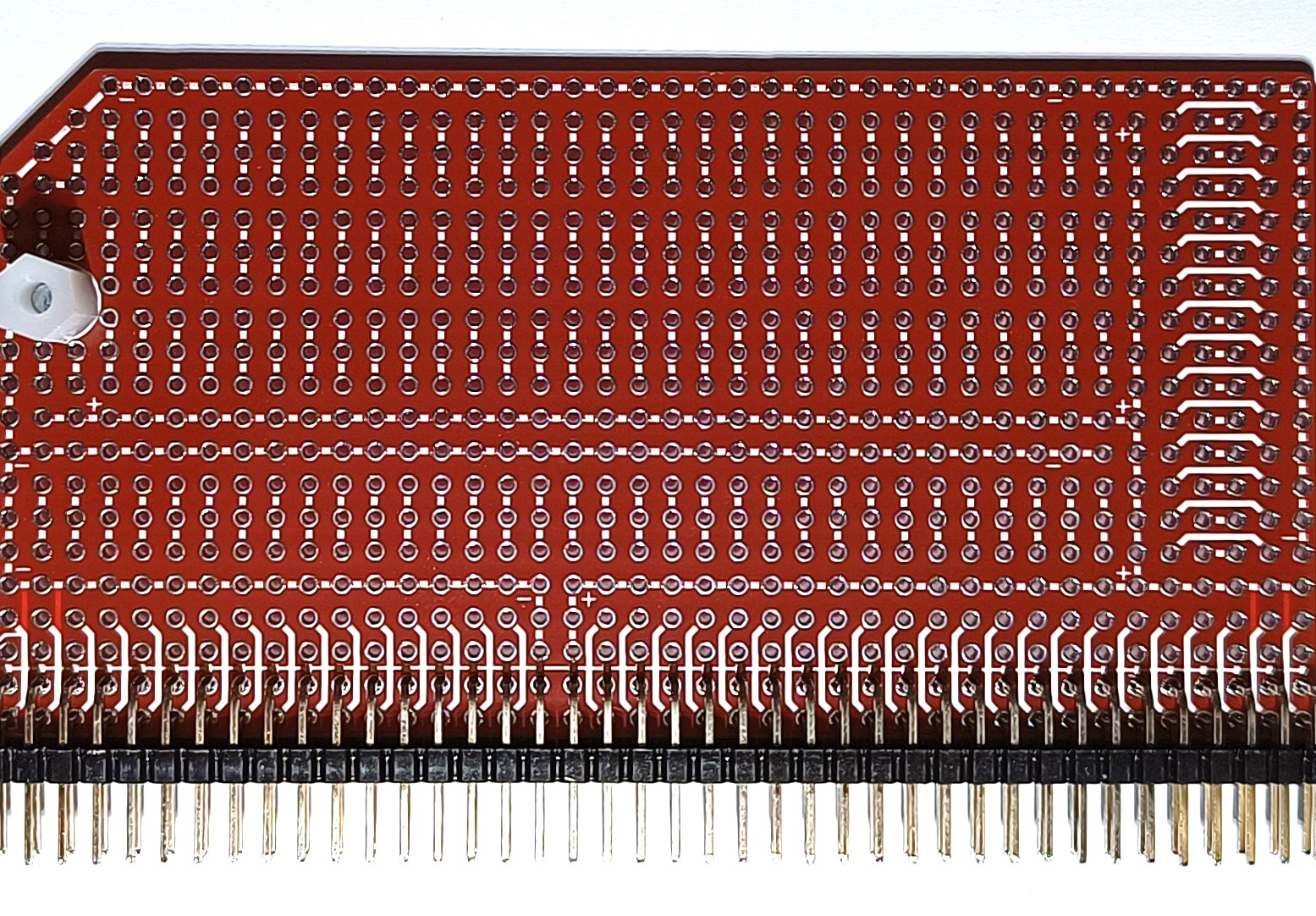

SC733 v1.0 RCBus Prototyping module
This module conforms fully to the RCBus specification v1.0 and thus supports: RCBus-2014, RCBus-Z80, RCBus-68xx, RCBus-9995.
The RCBus specification includes RCBus-2014 (both RC2014 standard 40-pin bus and RC2014 enhanced 60-pin bus) and also the full 80-pin RCBus. The 80-pin RCBus provides support for advanced Z80 features, such as the interrupt daisy-chain, as well as support for other processor families.
Design Drawing
