STD ssh_multi_console_cable v1.1
License: Public Domain
Mode: Editors' pick
Cloned from ssh_multi_console_cable
- 0
Update time：
2021-06-26 19:09:30
Creation time：
2021-04-05 11:51:58
Description
Quad RS232 console based on ssh protocol with 6 outputs for pushbutton control and 4 relays for power up.
Design Drawing

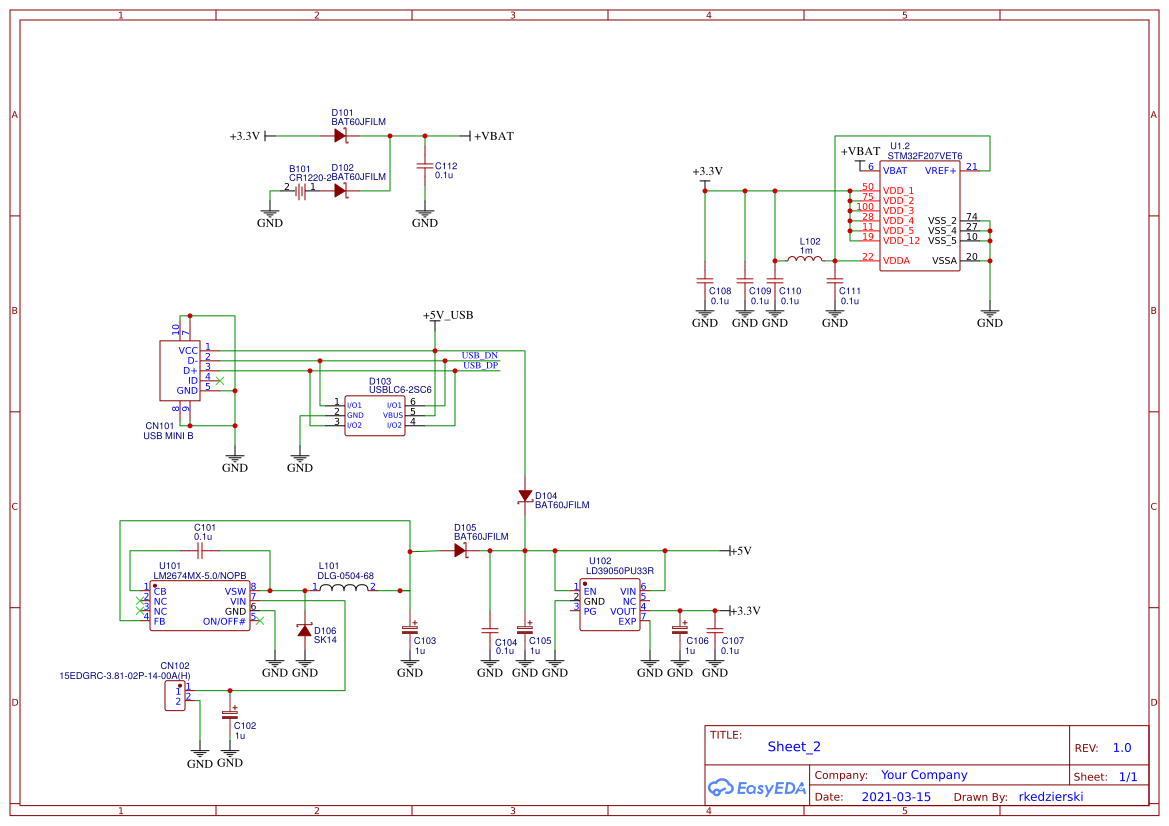

schematic diagram
（
1
/
）
-
Power_suply_and_USB copy
Open in Editor -
MCU copy
Open in Editor -
Ethernet copy
Open in Editor -
Consoles copy
Open in Editor
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | CR1220-2 | B101 | BAT-SMD_CR1220-2 | 1 |
| 2 | 0.1u | C101,C104,C107,C108,C109,C110,C111,C112,C205,C206,C207 | C0603 | 11 |
| 3 | 1u | C102,C103,C105,C106,C204 | CASE-A_3216 | 5 |
| 4 | USB MINI B | CN101 | CON_USMINI_B_MX-67503-1020 | 1 |
| 5 | 15EDGRC-3.81-02P-14-00A(H) | CN102,CN1,CN2,CN309,CN310,CN311,CN312 | CONN-TH_2P-P3.81_JL15EDGRC-38102G01 | 7 |
| 6 | BAT60JFILM | D101,D102,D104,D105 | SOD-323_L1.8-W1.3-LS2.5-RD | 4 |
| 7 | USBLC6-2SC6 | D103 | SOT-23-6_L2.9-W1.6-P0.95-LS2.8-BR | 1 |
| 8 | SK14 | D106 | SMA_L4.3-W2.6-LS5.2-RD | 1 |
| 9 | DLG-0504-68 | L101 | DLG-0504-3R3 | 1 |
| 10 | 1m | L102,L201 | L0805 | 2 |
| 11 | LM2674MX-5.0/NOPB | U101 | SOIC-8_L4.9-W3.9-P1.27-LS6.0-BL | 1 |
| 12 | LD39050PU33R | U102 | DFN-6_L3.0-W3.0-P0.95-LS3.1-TL-EP | 1 |
| 13 | STM32F207VET6 | U1 | LQFP-100_L14.0-W14.0-P0.50-LS16.0-BL | 1 |
| 14 | Cap_2.2uF_X7R_10%_0805 | C1,C2 | TAN-A | 2 |
| 15 | 2p | C3,C4 | C0603 | 2 |
| 16 | 4p7 | C5,C6 | C0603 | 2 |
| 17 | 1n | C7,C8 | C0603 | 2 |
| 18 | JTAG | H1 | HDR-TH_20P-P2.00-V-F-R2-C10-S2.00 | 1 |
| 19 | Header-Male-2.54_1x4 | H2 | HDR-TH_4P-P2.54-V | 1 |
| 20 | LTST-C155KGJRKT | LED1 | LED-ARRAY-SMD_4P-L3.2-W2.7-BR | 1 |
| 21 | 10k | R1,R2,R201,R203,R204,R205,R211,R221 | R0603 | 8 |
| 22 | 270 | R3,R4,R219,R220 | R0603 | 4 |
| 23 | 1k | R5,R6,R301,R302,R303,R304,R305,R306,R307,R308,R309,R310,R311,R312,R313,R314,R315,R316,R317,R318,R319,R320,R321,R322,R323,R324,R325,R326,R327,R328,R329,R330 | R0603 | 32 |
| 24 | 32.768KHz | X1 | XD-3215 | 1 |
| 25 | 8MHz | X2 | OSC-SMD_4P-L5.0-W3.2-BL | 1 |
| 26 | 30p | C201,C202 | C0603 | 2 |
| 27 | 470p | C203 | C0603 | 1 |
| 28 | 10u | C208 | CASE-A_3216 | 1 |
| 29 | 0.1n | C209,C210,C211,C212 | C0603 | 4 |
| 30 | 1k5 | R202 | R0603 | 1 |
| 31 | 33 | R206,R207,R208,R209,R210,R212,R213 | R0603 | 7 |
| 32 | 4k7 | R214 | R0603 | 1 |
| 33 | 50 | R215,R216,R217,R218 | R0603 | 4 |
| 34 | LAN8742A-CZ | U201 | QFN-24_4X4X05P | 1 |
| 35 | SI-60062-F | U202 | RJ45-TH_HR913129A | 1 |
| 36 | 3225-25M-SR | X201 | CRYSTAL 3225 SMD | 1 |
| 37 | 95501-2661 | CN301,CN302,CN303,CN304 | RJ12-TH_95501-2661 | 4 |
| 38 | ESDA6V1SC6 | D301,D302,D303,D304,D309 | SOT-23-6_L2.9-W1.6-P0.95-LS2.8-BL | 5 |
| 39 | 1N4007G | D305,D306,D307,D308 | SMA_L4.4-W2.6-LS5.0-RD | 4 |
| 40 | JE-105DM | K301,K302,K303,K304 | JE-105DM | 4 |
| 41 | BC847 | Q301,Q302,Q303,Q304 | SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BR | 4 |
| 42 | TLP185(GB-TPR,SE(T | U301,U302,U303,U304,U305,U306 | SOP-4_L4.4-W4.0-P2.54-LS7.0-TL | 6 |
