CompletedBNC TTL Level shifter
STDBNC TTL Level shifter
411
0
0
0
Mode:Full
License
：Public Domain
Creation time:2023-01-06 09:02:12Update time:2024-03-22 15:38:35
Description

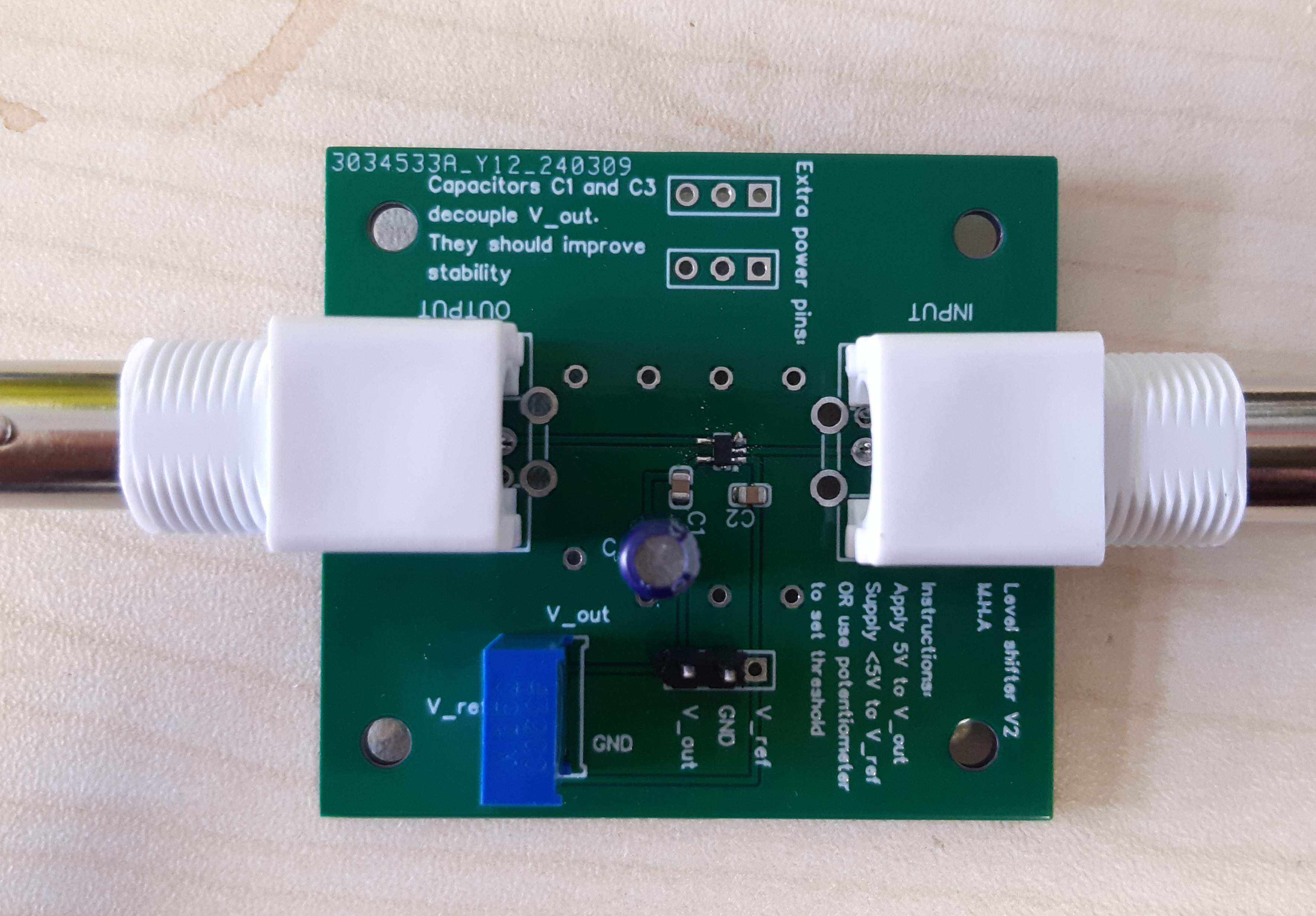

TTL level shifter. Output a 4.5 V signal when the input voltage exceeds a threshold set by onboard potentiometer. Fast 2 ns rise time. The output is capable of driving 50 Ohm loads. Based on the SC-88 level shifter IC.
