STD ATTinyGame - Mini-game com ATtiny85

  • 163
  • 0
  • 1

Profile:Mini-game com ATtiny85

License: Public Domain

Creation time: 2022-11-08 21:09:06
Update time: 2022-11-09 09:37:20
Description

Electronoobs Mini-game adapted

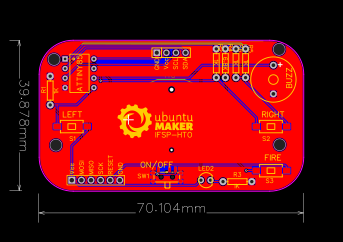

Design Drawing
schematic diagram
1 /
PCB
1 /
Empty
ID Name Designator Footprint Quantity BOM_Manufacturer Part
1 AAA-BAT-054-P06 BT1 BAT-SMD_AAA-BAT-054-P06 1 AAA-BAT-054-P06
2 BUZZER-12X9 BUZZER1 BUZ-TH_BD12.0-P7.60-D0.6-FD 1 buzzer-12X9
3 220S-1*4P H=8.5MM Ytype Gold-plated H1 DIP-1X4P2.54 1 220S-1*4P H=8.5MM Ytype Gold-plated
4 Attiny85 IC1 DIP8 1 Attiny85
5 LED-TH-3mm_G LED2 LED-TH_BD3.0_GREEN 1 204-10SYGD/S530-E3
6 Header-Female-2.54_1x6 P1 HDR-6X1/2.54 1 Female header 1*6p
7 1K R1,R2,R3,R5,R6 R_AXIAL-0.3 5 0805WAD1001T5E
8 6.8K R4 R_AXIAL-0.3 1 0805WAD1001T5E
9 TS-1101-C-W S1,S2,S3 SW-SMD_L6.0-W3.3-LS8.0 3 TS-1101-C-W
10 SSSS811101 SW1 SW-SMD_SSSS811101 1 SSSS811101
