Std edition 6502 "Poor Man's Arduino" Computer
No Profile
License: Public Domain
Description

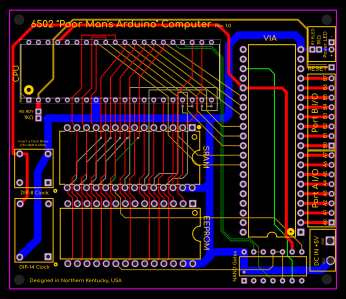

This is a simplified 6502 computer motherboard. It's designed to be simple, compact, and easy to use. The schematics are derived from the Ben Eater 6502 series.
This schematic is available for anyone to view, edit, and clone.
9.23.2020 - PCB REV 1.1: Now using only a 2-layer PCB for cheaper production costs.
Design Drawing
schematic diagram
（
