BOSS DS-1

Ongoing

STD BOSS DS-1

License: Public Domain

Mode:

Editors' pick

Update time： 2023-01-04 17:47:45

Creation time： 2022-11-26 09:50:39

Description

Project Coming From

Design Drawing

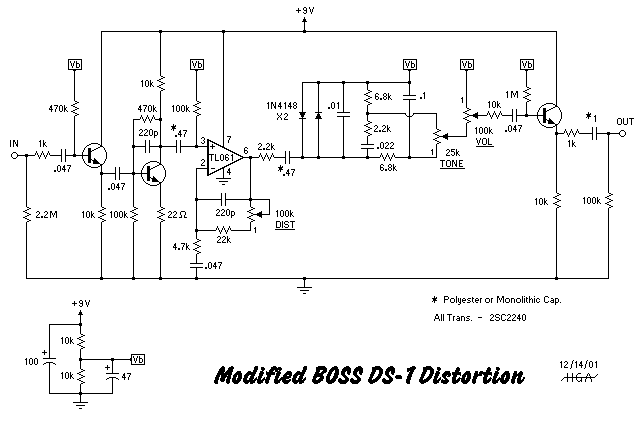

schematic diagram

（ 1 / ）

PCB

（ 1 / ）

The preview image was not generated, please save it again in the editor.

BOM

ID	Name	Designator	Footprint	Quantity	BOM_Supplier	BOM_Supplier Part
1	47nF	C1,C2,C3,C4,C7,C9	CAP-TH_L5.5-W2.0-P5.00-D1.0	6	LCSC	C249138
2	220pF	C5,C6	CAP-TH_L5.5-W2.0-P5.00-D1.0	2	LCSC	C249138
3	1uF	C8	CAP-TH_L7.6-W3.8-P5.08-D1.0	1	LCSC	C444742
4	22nF	C10	CAP-TH_L4.8-W2.3-P5.08-D0.65	1	LCSC	C377845
5	47Uf	C11	CAP-TH_BD5.0-P2.00-D0.5-FD-1	1	LCSC	C2960196
6	100nF	C12	CONDENSADOR CERÀMIC 10NF	1	Farnell	1902262
7	1N4001	D1	DO-41_BD2.4-L4.7-P8.70-D0.9-RD	1	LCSC	C2456
8	1N40148	D2,D3	DO-35	2	LCSC	C14516
9	Input	H1	HDR-F-2.54_1X2	1	LCSC	C49661
10	HDR-F-2.54_1x4	H2	HDR-F-2.54_1X4	1	LCSC	C225501
11	HDR-F-2.54_1x6	H3	HDR-F-2.54_1X6	1	LCSC	C40877
12	2N3904	Q1,Q2,Q3	TO-92-3_L4.6-W3.6-P1.30-L_2N3904	3	LCSC	C2874602
13	10K	R2,R4,R6,R9,R17,R21	RES-TH_BD2.7-L6.2-P10.20-D0.4	6	LCSC	C2896834
14	100K	R3,R10,R16	RES-TH_BD2.7-L6.2-P10.20-D0.4	3	LCSC	C2896834
15	470K	R5,R7	RES-TH_BD2.7-L6.2-P10.20-D0.4	2	LCSC	C2896834
16	1K	R8,R22	RES-TH_BD2.7-L6.2-P10.20-D0.4	2	LCSC	C2896834
17	22	R11	RES-TH_BD2.7-L6.2-P10.20-D0.4	1	LCSC	C2896834
18	2,2M	R12	RES-TH_BD2.7-L6.2-P10.20-D0.4	1	LCSC	C2896834
19	4,7K	R13	RES-TH_BD2.7-L6.2-P10.20-D0.4	1	LCSC	C2896834
20	22K	R14	RES-TH_BD2.7-L6.2-P10.20-D0.4	1	LCSC	C2896834
21	2,2K	R15,R18	RES-TH_BD2.7-L6.2-P10.20-D0.4	2	LCSC	C2896834
22	6,8K	R19,R20	RES-TH_BD2.7-L6.2-P10.20-D0.4	2	LCSC	C2896834
23	1M	R23	RES-TH_BD2.7-L6.2-P10.20-D0.4	1	LCSC	C2896834
24	TL061CP	U1	DIP-8_L10.0-W6.5-P2.54-LS7.6-BL	1	LCSC	C116735
25	100uF	U2	CAP-TH_BD6.3-P2.50-D0.5-FD	1	LCSC	C2880390
