STD morse code transceiver
Project Status:
Ongoing
License: MIT
- 0
Description
morse code wireless transceiver using nrf24l01
Design Drawing

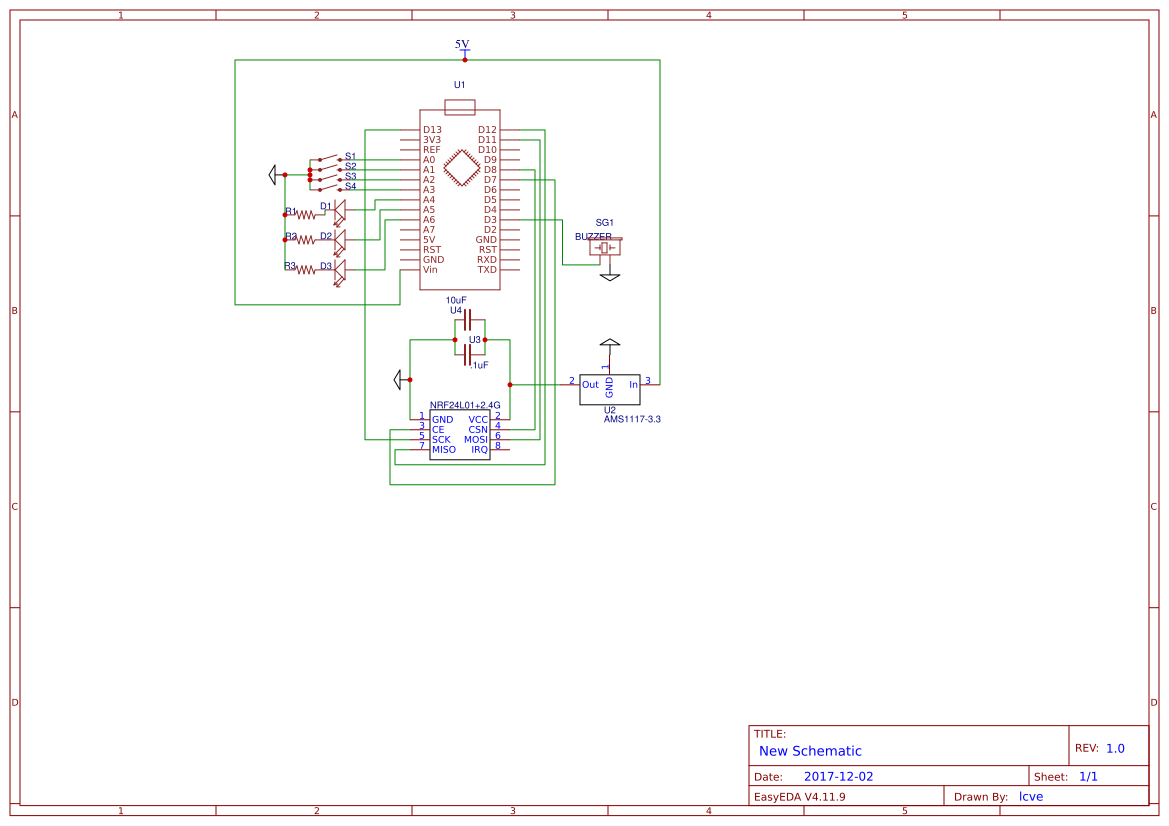

schematic diagram
（
1
/
）
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | NO | U1 | ARDUINO_NANO | 1 |
| 2 | NRF24L01+2.4G | MK1 | NRF24L01 | 1 |
| 3 | SWITCH-MOMENTARY-2 | S1,S2,S3,S4 | TACTILE-PTH-12MM | 4 |
| 4 | 504BW | D1,D2,D3 | LED2-2.54-D5.0MM | 3 |
| 5 | .1uF | U3 | TWO_IO | 1 |
| 6 | 10uF | U4 | TWO_IO | 1 |
| 7 | RESISTOR | R1,R2,R3 | AXIAL-0.3 | 3 |
| 8 | BUZZER | SG1 | BUZZER-12MM-NS | 1 |
| 9 | AMS1117-3.3 | U2 | SOT-223 | 1 |
