STD Proiect PMD 2022-2023
Profile：PMD
License: Public Domain
Description
Proiect PMD
Design Drawing
schematic diagram
（
1
/
）
-
Unitatea Centrala
Open in Editor -
Conectarea memoriilor
Open in Editor -
Decodificatorul de porturi
Open in Editor -

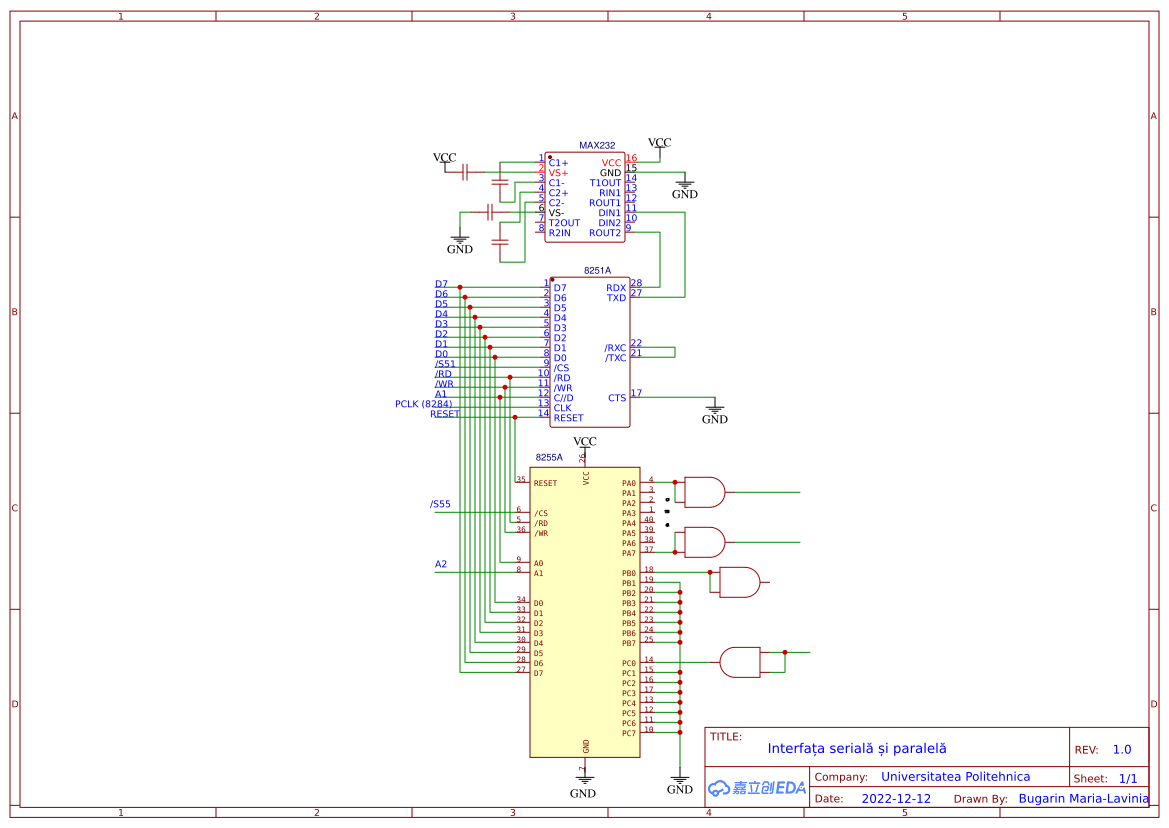

Interfața serială și paralelă
Open in Editor -
Minitastatura
Open in Editor -
LED-uri
Open in Editor -
Afișare segmente
Open in Editor -
Sheet_1
Open in Editor
PCB
（
1
/
）
Empty
| ID | Name | Designator | Quantity |
|---|---|---|---|
| 1 | SMAQ-5032A | 15MHZ | 1 |
| 2 | C1 | C1 | 1 |
| 3 | 1u | C2,C3 | 2 |
| 4 | 1N4448 | D1 | 1 |
| 5 | 1k | R1 | 1 |
| 6 | Push Button | SW-1SWITCH,SW-2SWITCH,SW-3SWITCH,SW-4SWITCH,SW-5SWITCH,SW-6SWITCH,SW-7SWITCH,SW-8SWITCH,SW-9SWITCH,SW-10SWITCH,SW-11SWITCH,SW-12SWITCH,SW-13SWITCH,SW-14SWITCH,SW-15SWITCH,SW-16SWITCH,SW-17SWITCH | 17 |
| 7 | 8086 | U1 | 1 |
| 8 | 74X373 | U2,U4,U5,U66,U68,U69,U70,U71,U72,U73,U74 | 11 |
| 9 | 8284A | U3 | 1 |
| 10 | 74X245 | U6,U7 | 2 |
| 11 | AND | U8 | 1 |
| 12 | 74X138 | U9,U16,U17,U18 | 4 |
| 13 | 27C1024 | U10,U11 | 2 |
| 14 | SRAM 62512 | U12,U13 | 2 |
| 15 | OrGate | U14,U15,U29,U30,U31,U32,U36,U37,U38,U39,U41,U43,U44,U53,U54,U55,U56,U57,U58,U59 | 20 |
| 16 | 1_2_Both_Switch | SW1,SW2 | 2 |
| 17 | INVERTER | U19,U21,U22,U23,U24,U25,U26,U27,U28,U33,U34,U35,U40,U42,U45,U46,U47,U48,U49,U50,U51,U52 | 22 |
| 18 | 0.1u | C4,C5,C6,C7 | 4 |
| 19 | 8251A | U20 | 1 |
| 20 | 8255A | U60 | 1 |
| 21 | MAX232 | U61 | 1 |
| 22 | AND2EE_US | U62,U63,U64,U67 | 4 |
| 23 | 1N4007W | D2,D3,D4,D5 | 4 |
| 24 | 10k | R2,R3,R4,R5 | 4 |
| 25 | 74X244 | U65 | 1 |
| 26 | LED | LED1,LED2,LED3,LED4,LED5,LED6,LED7,LED8 | 8 |
| 27 | 1k | R6,R7,R8,R9,R10,R11,R12,R13,R14,R15,R16,R17,R18,R19,R20,R21,R22,R23,R24,R25,R26,R27,R28,R29,R30,R31,R32,R33,R34,R35,R36,R37,R38,R39,R40,R41,R42,R43,R44,R45,R46,R47,R48,R49,R50,R51,R52,R53,R54,R55,R56,R57,R58,R59,R60,R61 | 56 |
| 28 | SEG-TH_0.56×1_Cathode | SEG1,SEG2,SEG3,SEG4,SEG5,SEG6 | 6 |
