STD Enhanced Z80 CPU Board 2020

  • 945
  • 0
  • 2

No Profile

License: MIT

Creation time: 2019-11-19 14:36:56
Update time: 2022-01-26 05:43:38
Description
Work in progress..
Design Drawing
schematic diagram
1 /

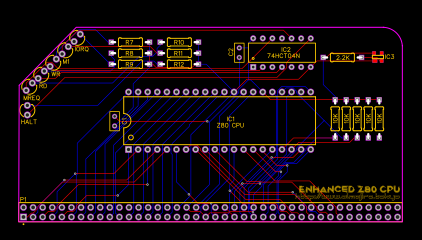

PCB
1 /
Empty
ID Name Designator Footprint Quantity
1 Capacitor1_US C1,C2 RAD-0.1 2
2 74HCT04N IC2 DIP14 1
3 Male for SC112 P1 HDR-TH_80PIN-V-ROW2-COL40-MALE-PITCH2.54 1
4 2.2K R1 RTH025W 1
5 10K R2,R3,R4,R5,R6 RTH025W 5
6 470 R7,R8,R9,R10,R11,R12 RTH025W 6
7 MAX811 IC3 SOT-143 1
8 WR_LED WR LED-3MM/2.54 1
9 RD_LED RD LED-3MM/2.54 1
10 IORQ_LED IORQ LED-3MM/2.54 1
11 MREQ_LED MREQ LED-3MM/2.54 1
12 M1_LED M1 LED-3MM/2.54 1
13 HALT_LED HALT LED-3MM/2.54 1
14 Z80 CPU IC1 DIP-40 1
