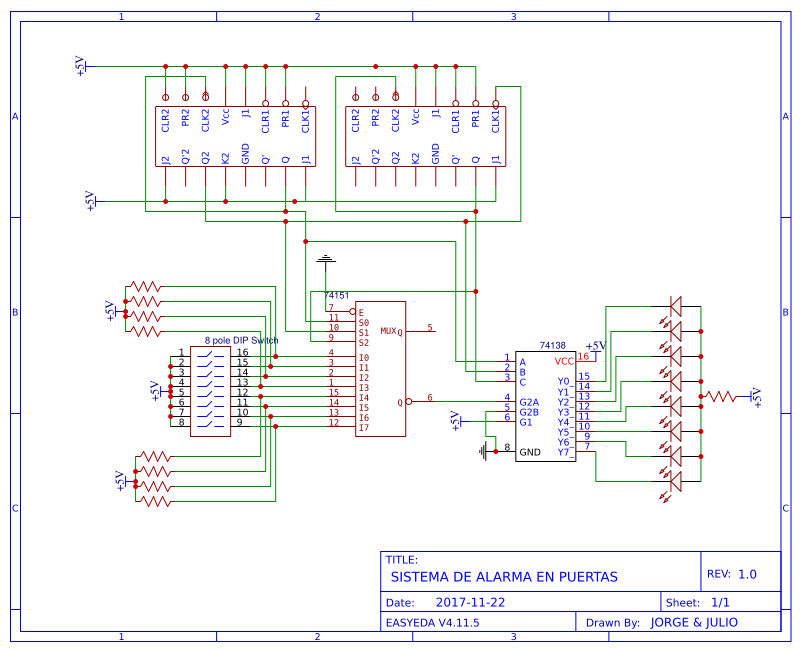

OngoingMULTIPLEXOR 74151
STDMULTIPLEXOR 74151
1.5k
0
0
0
Mode:Full
License
：Creation time:2017-11-13 02:43:47Update time:2018-03-27 16:04:02
Description
BOM
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | SN74LS47NE4 | U1,U3,U7,U9,U13,U15 | DIP16 | 6 |
| 2 | NO | U2,U4,U8,U10,U14,U16 | 7-Segment-Display | 6 |
| 3 | 1k | R1,R2,R3,R4,R5,R6 | AXIAL-0.5 | 6 |
| 4 | SN74193 | U5,U6,U11,U12,U17,U18 | DIP16 | 6 |
| 5 | SN7400N | D1,D2,D3,D4,D5,D6 | N014 | 6 |
