OngoingESP32 microUSB-B Converter
STDESP32 microUSB-B Converter
License
：Public Domain
Description
Overview
This module converts the micro-USB-B port of the ESP32-WROOM32 microcontroller to USB-B and USB-A. This adds conveniency to use the device with the USB-B cables (this one is generally shipped with Arduino microcontrollers) and USB-A cables.
Note
- The microUSB-B male connector needs to be manually soldered according to the pin specifications.
- DO NOT use both the USB-B and USB-A connectors at the same time because of the risk of cross-communication as there is no USB controllers used.

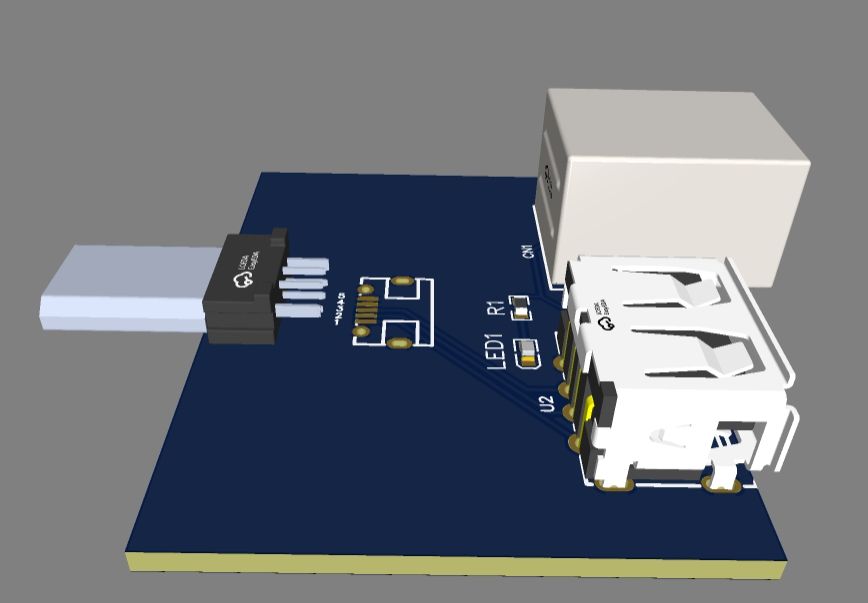

Design Drawing
The preview image was not generated, please save it again in the editor.BOM
Bom empty
CloneProject Members
Intellectual Property Statement & Reproduction Instructions
This is an open-source hardware project. All intellectual property rights belong to the creator. The project is shared on the platform for learning, communication, and research only; any commercial use is prohibited. If your intellectual property rights are infringed on EasyEDA, please notify us by submitting relevant materials in accordance with the Rules for Complaints and Appeals of IPR Infringement.
Users must independently verify the circuit design and suitability when replicating this project. All risks and consequences are borne by the user, and the platform assumes no liability.
