STD ESP32 Weather Station
ESP32 Weather Station
License
Public Domain
License: Public Domain- 2
Update time：
2023-11-19 21:04:46
Creation time：
2023-03-22 18:40:32
Description
Description
Weather station that can display the weather forecast, air quality and, using wireless sensors, the temperature, humidity and air pressure in several rooms.
Design Drawing
Design Drawing

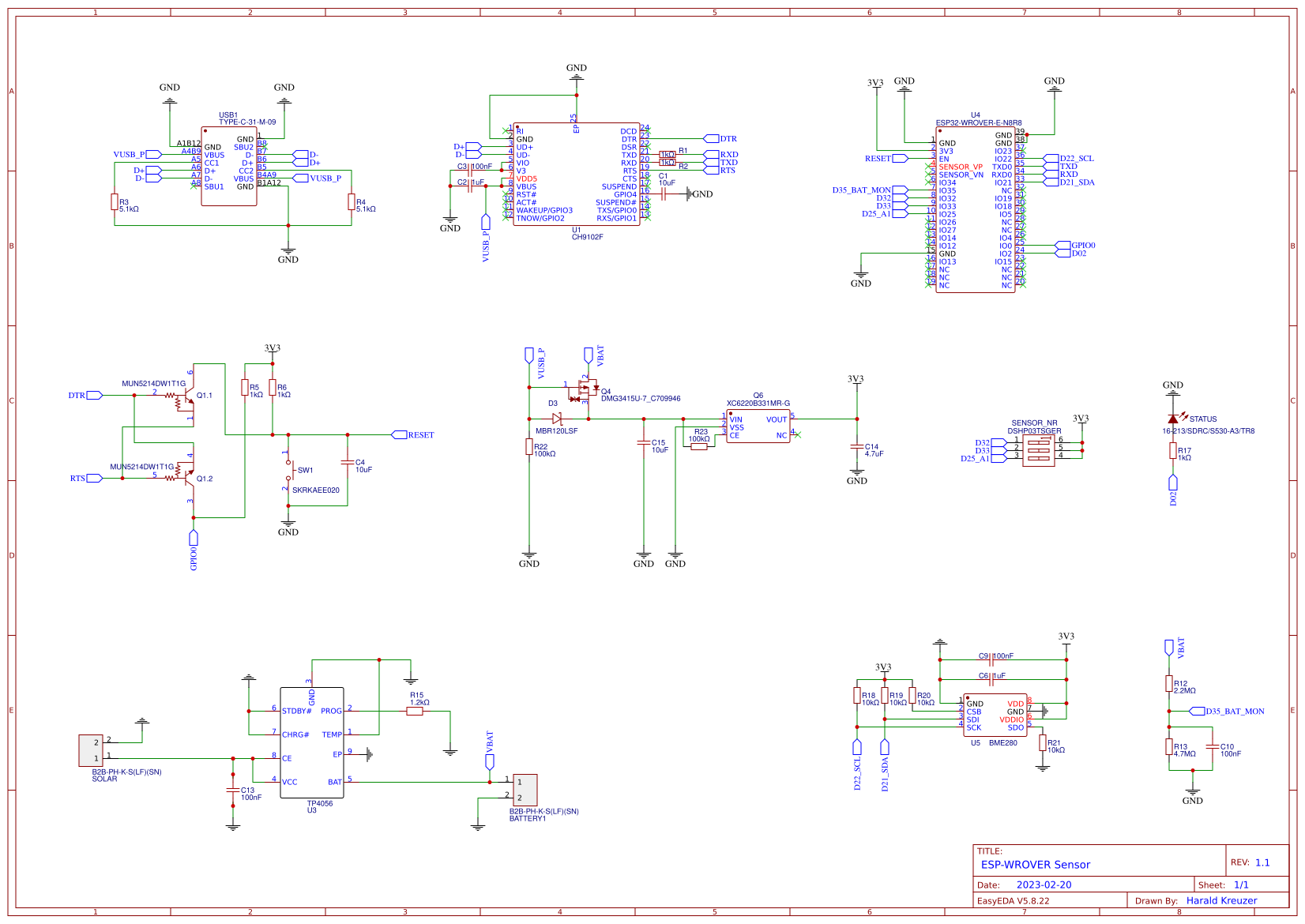

schematic diagram
（
1
/
）
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity | Package Display | |
|---|---|---|---|---|---|---|
| 1 | B2B-PH-K-S(LF)(SN) | BATTERY1,SOLAR | CONN-TH_B2B-PH-K-S | 2 | B2B-PH-K-S(LF)(SN) | |
| 2 | 100nF | C1,C7,C9,C10 | C0603 | 4 | CL10A104KA8NNNC | |
| 3 | 1uF | C2,C8 | C0603 | 2 | CL10A105MB8NNNC | |
| 4 | 10uF | C3,C4,C6 | C0603 | 3 | CL10A106MP8NNNC | |
| 5 | 4.7uF | C5 | C0603 | 1 | CL10A475KP8NNNC | |
| 6 | MBR120LSF | D1 | SOD-123_L2.8-W1.8-LS3.7-RD | 1 | MBR120LSF | |
| 7 | DMG3415U-7 | Q1 | SOT-23-3_L2.9-W1.6-P1.90-LS2.8-BR-CW | 1 | DMG3415U-7 | |
| 8 | XC6220B331MR-G | Q3 | SOT-25-5_L3.0-W1.8-P0.95-LS3.0-BR | 1 | XC6220B331MR-G | |
| 9 | 1kΩ | R1,R2,R5,R6,R9 | R0603 | 5 | ERJ3GEYJ102V | |
| 10 | 5.1kΩ | R3,R4 | R0603 | 2 | RMC06035.1K1%N | |
| 11 | 100kΩ | R7,R8 | R0603 | 2 | 0603WAJ0104T5E | |
| 12 | 2.2MΩ | R10 | R0603 | 1 | 0603WAJ0225T5E | |
| 13 | 10kΩ | R11,R12,R13,R15 | R0603 | 4 | 0603WAJ0103T5E | |
| 14 | 1.2kΩ | R14 | R0603 | 1 | ERJ3GEYJ122V | |
| 15 | 4.7MΩ | R16 | R0603 | 1 | 0603WAJ0475T5E | |
| 16 | DSHP03TSGER | SENSOR_NR | SW-SMD_6P-L5.4-W5.4-P1.27-LS8.4 | 1 | DSHP03TSGER | |
| 17 | 16-213/SDRC/S530-A3/TR8 | STATUS | LED0402-RD | 1 | 16-213/SDRC/S530-A3/TR8 | |
| 18 | SKRKAEE020 | SW1 | SW-SMD_L3.9-W3.0-P4.45 | 1 | SKRKAEE020 | |
| 19 | CH9102F | U1 | QFN-24_L4.0-W4.0-P0.50-BL-EP2.5 | 1 | CH9102F | |
| 20 | ESP32-WROVER-E-N8R8 | U2 | WIFI-SMD_ESP32-WROVER-IE8MB | 1 | ESP32-WROVER-E-N8R8 | |
| 21 | BME280 | U3 | LGA-8_BME280_BL | 1 | BME280 | |
| 22 | TP4056 | U4 | ESOP-8_L4.9-W3.9-P1.27-LS6.0-BL-EP | 1 | TP4056 | |
| 23 | TYPE-C-31-M-09 | USB1 | USB-C-SMD_TYPE-C-31-M-09 | 1 | TYPE-C-31-M-09 | |
| 24 | MUN5214DW1T1G | Q2 | SOT-363_L2.0-W1.3-P0.65-LS2.1-TL | 1 | MUN5214DW1T1G | 1 |
| 25 | 1MΩ | R17 | R0603 | 1 | 0603WAJ0225T5E | |
| 26 | 1MΩ | R18 | R0603 | 1 | 0603WAJ0475T5E | |
| 27 | PHOTOCELL | R19 | PHOTOCELL-KIT | 1 | PHOTOCELL |
