STD IOBus - Speech processor
License: GPL 3.0
Mode: Editors' pick
- 0
Update time：
2022-03-07 12:55:10
Creation time：
2021-10-20 04:03:42
Description
For more information see https://github.com/dhansel/Altair8800-IOBus
Design Drawing
schematic diagram
（
1
/
）

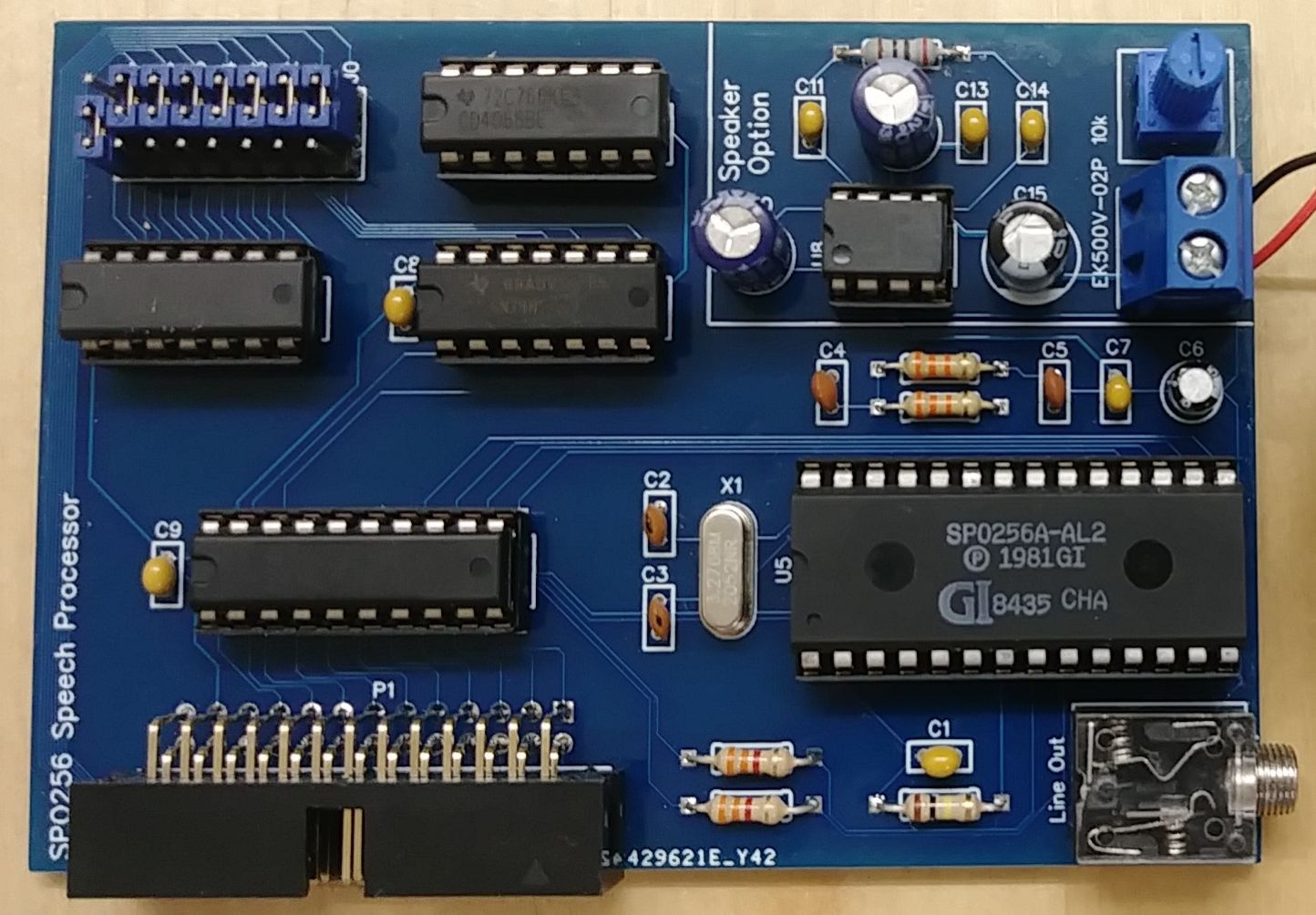

PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 100nF | C1,C7,C8,C9,C11,C13,C14 | CERAMIC-2.54 | 7 |
| 2 | 22pF | C2,C3 | CERAMIC-2.54 | 2 |
| 3 | 22nF | C4,C5 | CERAMIC-2.54 | 2 |
| 4 | 1uF | C6 | CAP-TH_BD5.0-P2.00-D0.5-FD | 1 |
| 5 | 10uF | C10,C12 | CAP-TH_BD6.3-P2.50-D1.0-FD | 2 |
| 6 | 220uF | C15 | CAP-TH_BD8.0-P3.50-D0.6-FD | 1 |
| 7 | CON_HEADER_1X03-PTH | J0,J1,J2,J3,J4,J5,J6,J7 | M1X3 | 8 |
| 8 | Line Out | J8 | AUDIO-TH_PJ324 | 1 |
| 9 | SBH11-PBPC-D13-RA-BK | P1 | SBH11-PBPC-D13-RA-BK | 1 |
| 10 | 100k | R1 | RTH025W | 1 |
| 11 | 3.3k | R2,R3 | RTH025W | 2 |
| 12 | 33k | R4,R5 | RTH025W | 2 |
| 13 | 10k | R7 | RES-ADJ_3386P | 1 |
| 14 | 10 Ohm | R8 | RTH025W | 1 |
| 15 | Speaker | SPEAKER | CONN-TH_EK500V-02P | 1 |
| 16 | CD4068BE | U3 | DIP14 | 1 |
| 17 | SN74LVC245AN | U4 | DIL20 | 1 |
| 18 | SPO256 | U5 | DIP28-2.54-35.6X13.5MM | 1 |
| 19 | LM386N-4 | U8 | DIP8 | 1 |
| 20 | 3.2768MHz | X1 | HC-49S | 1 |
| 21 | MC74HC04AN | U1 | DIP14 | 1 |
| 22 | 74HC00 | U2 | DIP14 | 1 |
