2513 CG chip adapter board.

STD2513 CG chip adapter board.

tag

546
0
0
0
Mode:Full

License

GPL 3.0

Creation time:2021-06-02 19:29:14Update time:2021-11-26 19:32:18

Description

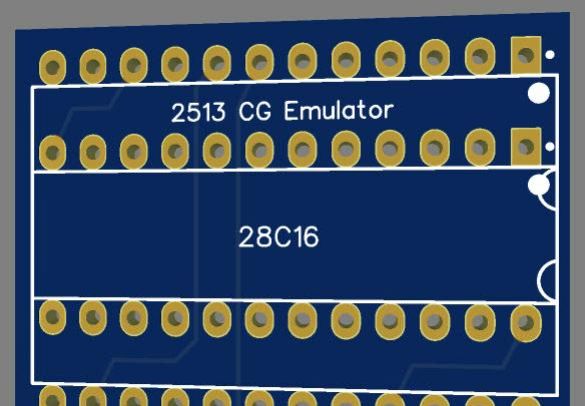

An adapter board to allow replacement of a 2513 Character Generator with a 28C16 EEPROM.  Can also use a 2716 UV EPROM if you have a programmer that can handle the 25 V programming.



The 2513 Character Generator chip was used in many 1970's devices like the Apple 1, 2 as well as most of the TV Typewriter projects published in Radio-Electronics and other magazines.



Search online for the .bin file for the 2513.  Typically found on some Apple related sites.

Design Drawing
