Ongoingecl or/nor
STDecl or/nor
License
：GPL 3.0
Description

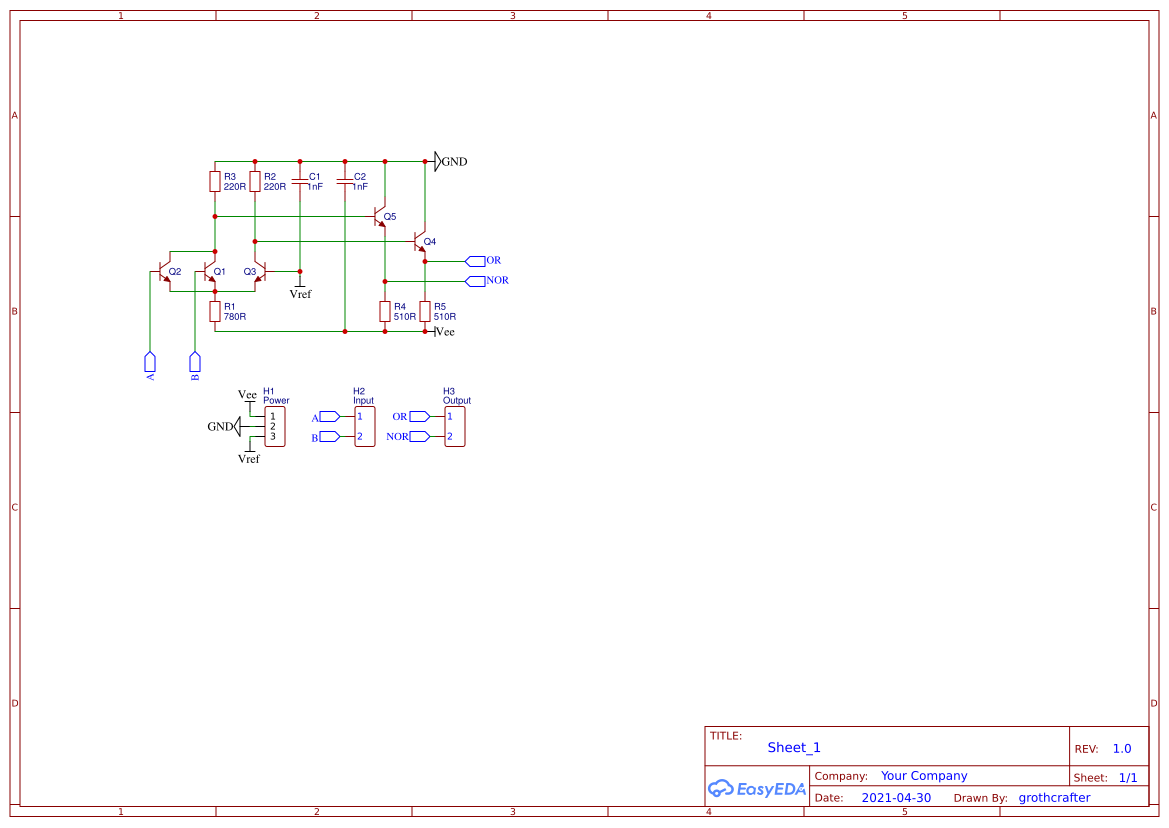

Emitor cuppled logic module for OR/NOR. Needs ground, -5.2V (Vee) and a bias voltage of -1.3V (Vref). The output swings from roughly -0.9V (High) to -1.7V (Low). EC logic has a high power consumption but is very fast. depending on the transistors used the circuit could reach switching speeds of 1ns. The board is designed to use 2n3904 npn transistors.
Design Drawing
The preview image was not generated, please save it again in the editor.BOM
Bom empty
