CompletedKTANE elec
STDKTANE elec
License
：Public Domain
Description
Le projet Keep talking and nobodies explodes au complet

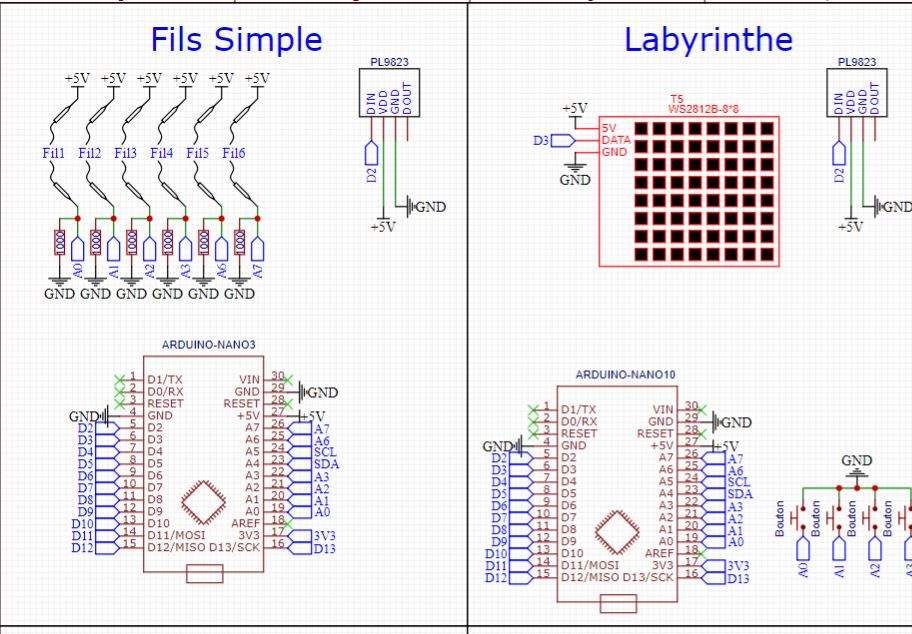

Chaque folio a les indications de cablage du module associé
Tous les modules sont alliment en 5V
Les cables communs a chaque modules sont : GND, 5V, SDA, SCl
Les modules communiquent en I2C
seule la carte pour le module SIMON a besoin de la version avec les NPN, les autres modules peuvent utiliser les 2 cartes indiférement
Design Drawing
