STD ST7796S Featherwing
License: GPL 3.0
Mode: Editors' pick
- 1
Update time：
2024-03-05 05:29:44
Creation time：
2024-01-23 16:35:12
Description

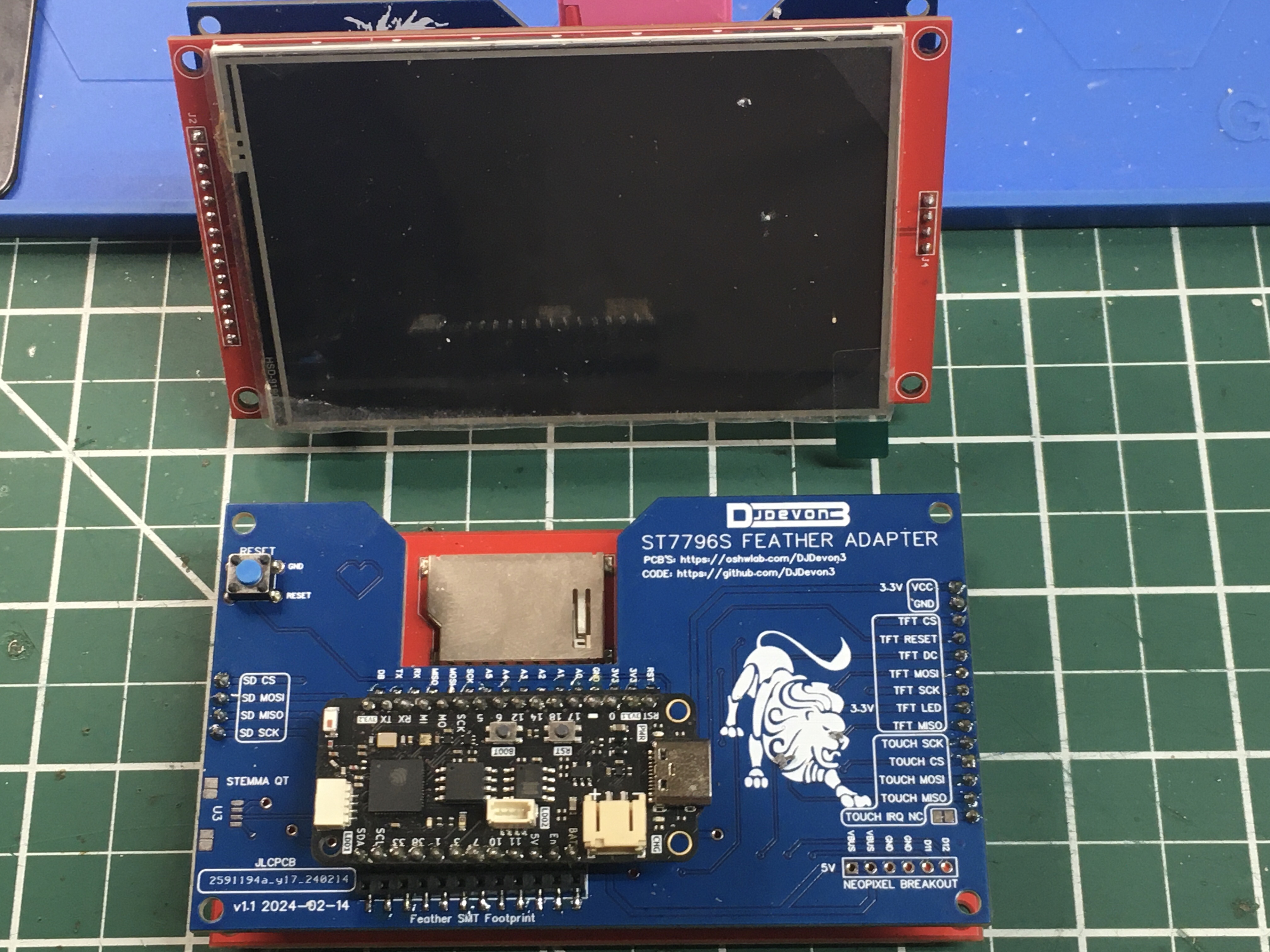

An adapter board for an ST7796S TFT touch display to Adafruit Feather ecosystem.
V1.0 was the prototype
V1.1 publicly shared:
- SPI TFT Touch Display & SDCard confirmed working
- Stemma QT port (unassembled)
- 5V Neopixel breakouts (bottom right corner) with pins D11 & D12 close by.
- 6mm tactile reset button
- Interrupt pin not connected but a pad is available for use
Design Drawing
schematic diagram
（
1
/
）
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity | |
|---|---|---|---|---|---|
| 1 | PM254-2-12-S-8.5 | CN1 | HDR-SMD_24P-P2.54-V-M-R2-C12-S7.3 | 1 | |
| 2 | HDR-F-2.54_1x10 | H1 | HDR-F-2.54_1X10 | 1 | |
| 3 | HDR-F-2.54_1x4 | H2,H3 | HDR-F-2.54_1X4 | 2 | |
| 4 | HDR-F-2.54_1x6 | H4 | HDR-F-2.54_1X6 | 1 | |
| 5 | button6*6*8 | RESET | KEY-6.0*6.0-2 | 1 | |
| 6 | SOLDERJUMPER_CLOSED | SJ1 | SOLDERJUMPER_CLOSEDWIRE | 1 | |
| 7 | PM254-2-16-S-8.5 | U1 | HDR-SMD_32P-P2.54-V-F-R2-C16-LS7.1 | 1 | |
| 8 | STEMMA QT | U3 | STEMMA QT | 1 |
