STD Infinitag Target (Lasertag)
License: CC-BY-NC-SA 3.0
Mode: Editors' pick
- 1
Update time：
2023-08-30 19:47:52
Creation time：
2023-05-25 18:46:47
Description

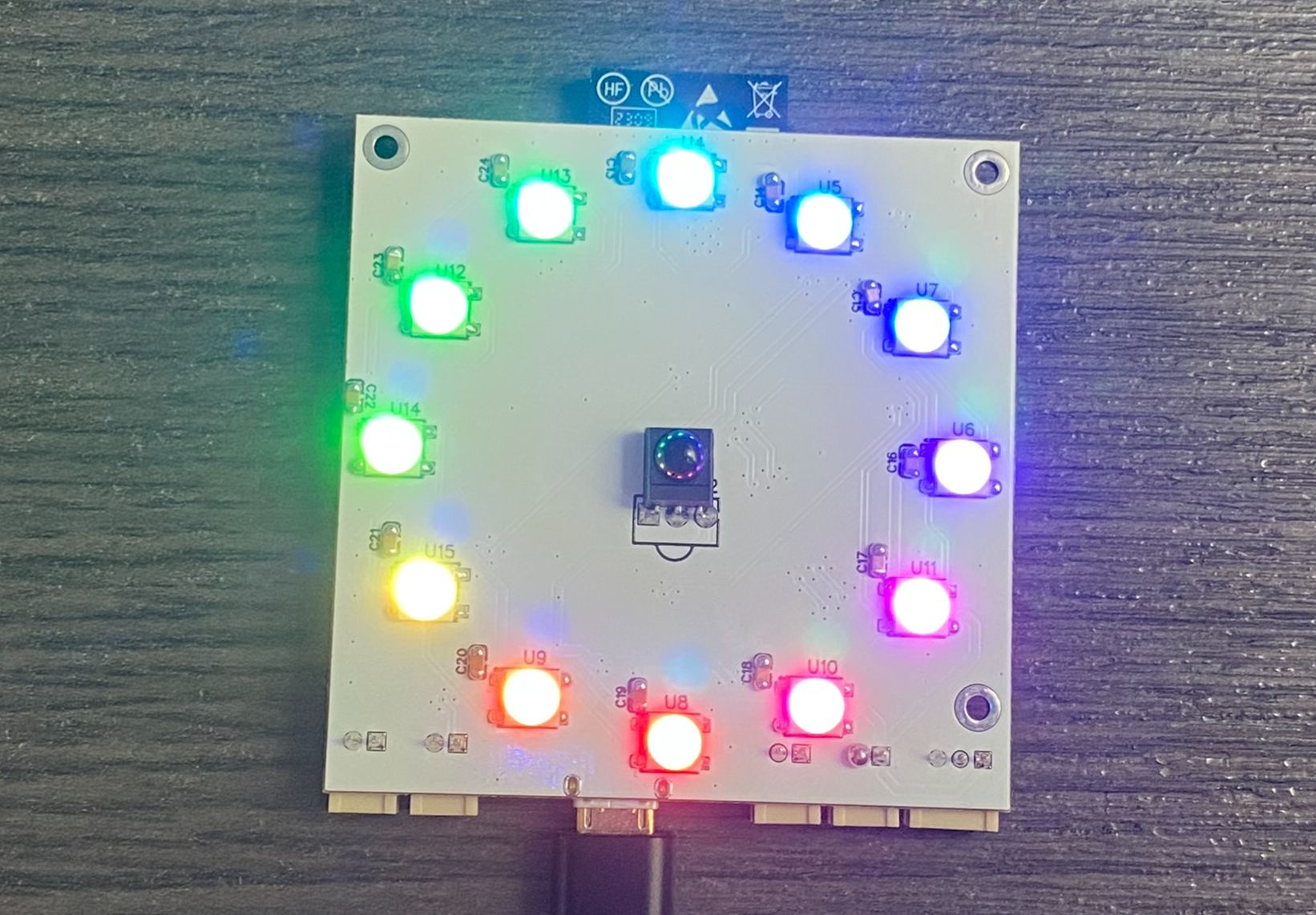

The Infinitag Target is a hit target for the Infinitag system based on an ESP32 S3 module.
The target has the following functions:
- 12 individually controllable RGBW LEDs on the front for a status display.
- IR receivers to receive the signals
- One switchable 5V connector
- One switchable 3.3V connector
- One switches to pass the incoming signal
- Power supply port
- Extension port for additional external LEDs
All further details and the source code can be found at: [https://github.com/Infinitag/Target](https://github.com/Infinitag/Target)
Design Drawing
schematic diagram
（
1
/
）
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity | Manufacturer Part | Manufacturer | Supplier | Contributor | spiceSymbolName | Resistance (Ohms) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | TS-1187A-B-A-B | BOOT,RESET | SW-SMD_4P-L5.1-W5.1-P3.70-LS6.5-TL-2 | 2 | TS-1187A-B-A-B | XKB Connectivity(中国星坤) | LCSC | C318884 | Basic Part | TS-1187A-B-A-B | |
| 2 | 100nF | C1,C6,C7,C9,C10,C12,C13,C14,C15,C16,C17,C18,C19,C20,C21,C22,C23,C24 | C0603 | 18 | CC0603KRX7R9BB104 | YAGEO(国巨) | LCSC | C14663 | Basic Part | CC0603KRX7R9BB104 | |
| 3 | 10uF | C2,C4,C5,C8,C11 | C0603 | 5 | CL10A106MA8NRNC | SAMSUNG(三星) | LCSC | C96446 | Basic Part | CL10A106MA8NRNC | |
| 4 | 1uF | C3 | C0603 | 1 | CL10A105KB8NNNC | SAMSUNG(三星) | LCSC | C15849 | Basic Part | CL10A105KB8NNNC | |
| 5 | 1N5819HW-7-F | D1 | SOD-123_L2.7-W1.6-LS3.7-RD | 1 | 1N5819HW-7-F | DIODES(美台) | LCSC | C82544 | Extended Part | 1N5819HW-7-F | |
| 6 | LESD5D5.0CT1G | D2,D3,D4 | SOD-523_L1.2-W0.8-LS1.6-BI | 3 | LESD5D5.0CT1G | LRC(乐山无线电) | LCSC | C383211 | Extended Part | LESD5D5.0CT1G | |
| 7 | KT-0603R | L-3.3V,L-5V,L-SW1,LED1 | LED0603-RD | 4 | KT-0603R | KENTO | LCSC | C2286 | Basic Part | KT-0603R | |
| 8 | S3B-PH-K(LF)(SN) | LED | CONN-TH_S3B-PH-K | 1 | S3B-PH-K(LF)(SN) | JST | LCSC | C545716 | Extended Part | S3B-PH-K(LF)(SN) | |
| 9 | TSOP4138 | LED2 | SENSOR-TH_TSOP4X | 1 | TSOP4138 | VISHAY(威世) | LCSC | C143760 | Extended Part | TSOP4138 | |
| 10 | S2B-PH-K(LF)(SN) | PWR,SW1,SW-3.3V,SW-5V | CONN-TH_S2B-PH-K-LF-SN | 4 | S2B-PH-K(LF)(SN) | JST Sales America | LCSC | C265016 | Extended Part | S2B-PH-K(LF)(SN) | |
| 11 | L8050QLT1G | Q1,Q2 | SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BR | 2 | L8050QLT1G | LRC(乐山无线电) | LCSC | C49581 | Extended Part | L8050QLT1G | |
| 12 | SS8050_C2150 | Q4,Q5 | SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BR | 2 | SS8050 | CJ(江苏长电/长晶) | LCSC | C2150 | Basic Part | SS8050_C2150 | |
| 13 | 0Ω | R1,R3,R4,R12,R13,R14 | R0603 | 6 | 0603WAF0000T5E | UNI-ROYAL(厚声) | LCSC | C21189 | Basic Part | 0603WAF0000T5E | |
| 14 | 10kΩ | R2,R5,R6 | R0603 | 3 | 0603WAF1002T5E | UNI-ROYAL(厚声) | LCSC | C25804 | Basic Part | 0603WAF1002T5E | |
| 15 | 5.1kΩ | R7,R15,R19,R20 | R0603 | 4 | 0603WAF5101T5E | UNI-ROYAL(厚声) | LCSC | C23186 | Basic Part | 0603WAF5101T5E | |
| 16 | 1kΩ | R8,R17,R18 | R0603 | 3 | 0603WAF1001T5E | UNI-ROYAL(厚声) | LCSC | C21190 | Basic Part | 0603WAF1001T5E | |
| 17 | 47kΩ | R9 | R0603 | 1 | 0603WAF4702T5E | UNI-ROYAL(厚声) | LCSC | C25819 | Basic Part | 0603WAF4702T5E | |
| 18 | 22kΩ | R10 | R0603 | 1 | 0603WAF2202T5E | UNI-ROYAL(厚声) | LCSC | C31850 | Basic Part | 0603WAF2202T5E | |
| 19 | 180Ω | R21 | R0603 | 1 | 0603WAF1800T5E | UNI-ROYAL(厚声) | LCSC | C22828 | Basic Part | 0603WAF1800T5E | |
| 20 | ESP32-S3-WROOM-1(N8R8) | U1 | WIRELM-SMD_ESP32-S3-WROOM-1 | 1 | ESP32-S3-WROOM-1(N8R8) | ESPRESSIF(乐鑫) | LCSC | C2913201 | Extended Part | ESP32-S3-WROOM-1(N8R8) | |
| 21 | AMS1117-3.3 | U2 | SOT-223-3_L6.5-W3.4-P2.30-LS7.0-BR | 1 | AMS1117-3.3 | AMS | LCSC | C6186 | Basic Part | AMS1117-3.3 | 1476261164 |
| 22 | CP2102N-A02-GQFN28R | U3 | QFN-28_L5.0-W5.0-P0.50-TL-EP3.3 | 1 | CP2102N-A02-GQFN28R | SILICON LABS(芯科) | LCSC | C964632 | Extended Part | CP2102N-A02-GQFN28R | |
| 23 | SK6812RGBW-5050 | U4,U5,U6,U7,U8,U9,U10,U11,U12,U13,U14,U15 | LED-SMD_4P-L5.0-W5.0-TL-2 | 12 | SK6812RGBW-5050 | null | LCSC | C9900014122 | Extended Part | SK6812RGBW-5050 | |
| 24 | BPC-817S/A | U16 | SOP-4_L6.5-W4.6-P2.54-LS10.2-BR | 1 | BPC-817S | BrtLed(佰鸿) | LCSC | C231225 | Extended Part | BPC-817S/A | |
| 25 | 105164-0001 | USB2 | MICRO-USB-SMD_5P-P0.65-H-F_105164-0001 | 1 | 1051640001 | MOLEX | LCSC | C234179 | Extended Part | 105164-0001 |
