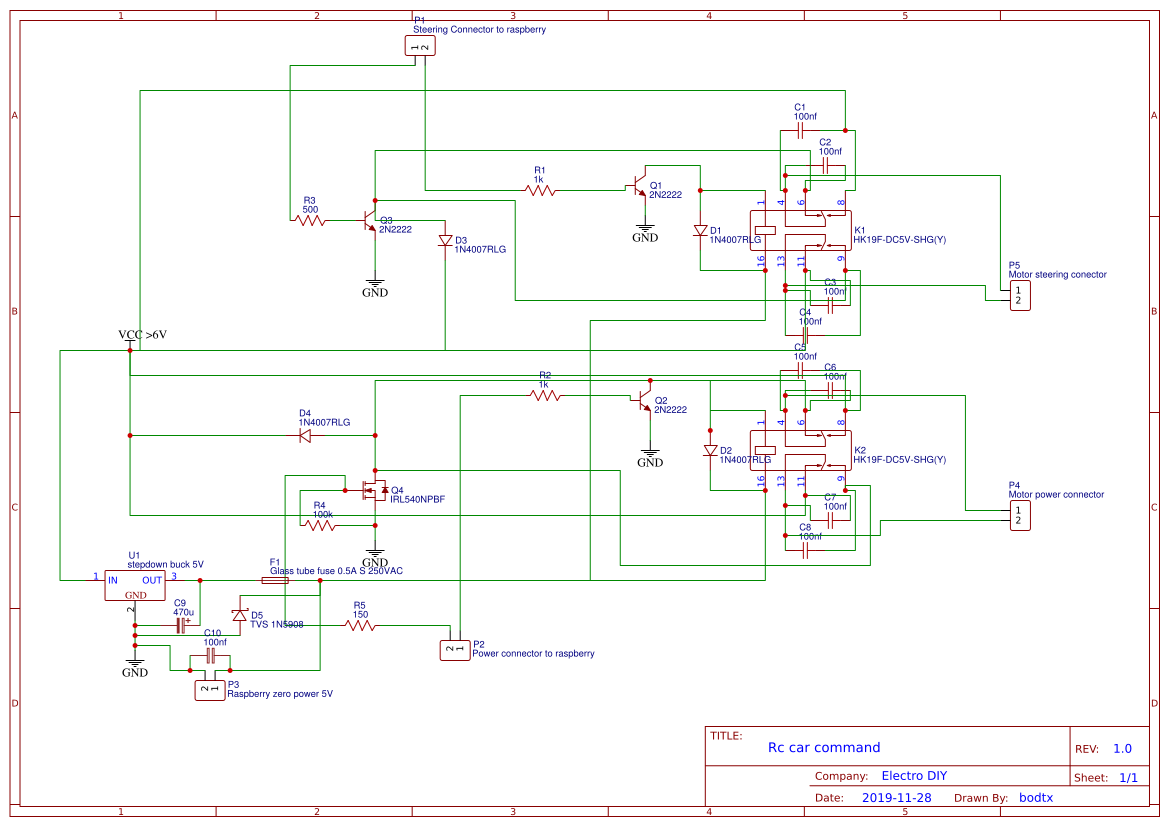

STD Rc car command
Mode: Editors' pick
ID | Name | Designator | Footprint | Quantity |
---|---|---|---|---|
1 | Steering Connector to raspberry | P1 | HDR-1X2/2.54 | 1 |
2 | Power connector to raspberry | P2 | HDR-1X2/2.54 | 1 |
3 | Raspberry zero power 5V | P3 | HDR-1X2/2.54 | 1 |
4 | Motor power connector | P4 | HDR-1X2/2.54 | 1 |
5 | Motor steering conector | P5 | HDR-1X2/2.54 | 1 |
6 | 1k | R1,R2 | AXIAL-0.4 | 2 |
7 | 500 | R3 | AXIAL-0.4 | 1 |
8 | 100k | R4 | AXIAL-0.4 | 1 |
9 | 150 | R5 | AXIAL-0.4 | 1 |
10 | 470u | C9 | CAP-D3.0XF1.5 | 1 |
11 | IRL540NPBF | Q4 | TO-220-3_L10.0-W4.5-P2.54-T | 1 |
12 | stepdown buck 5V | U1 | TO-220(TO-220-3) | 1 |
13 | 100nf | C1,C2,C3,C4,C5,C6,C7,C8,C10 | RAD-0.1 | 9 |
14 | 2N2222 | Q1,Q2,Q3 | TO-92(TO-92-3) | 3 |
15 | Glass tube fuse 0.5A S 250VAC | F1 | 2A-3F-250VAC | 1 |
16 | HK19F-DC5V-SHG(Y) | K1,K2 | RELAY-TH_8PIN_HK19F | 2 |
17 | 1N4007RLG | D1,D2,D3,D4 | DO-41_BD2.4-L4.7-P8.70-D0.9-RD | 4 |
18 | TVS 1N5908 | D5 | SOD-123_L2.8-W1.8-LS3.7-RD | 1 |
