STD Bluety Blink'n Switch

License: MIT

Mode: Editors' pick

  • 283
  • 0
  • 0
Update time: 2022-01-20 10:24:30
Creation time: 2019-12-26 17:02:28
Description

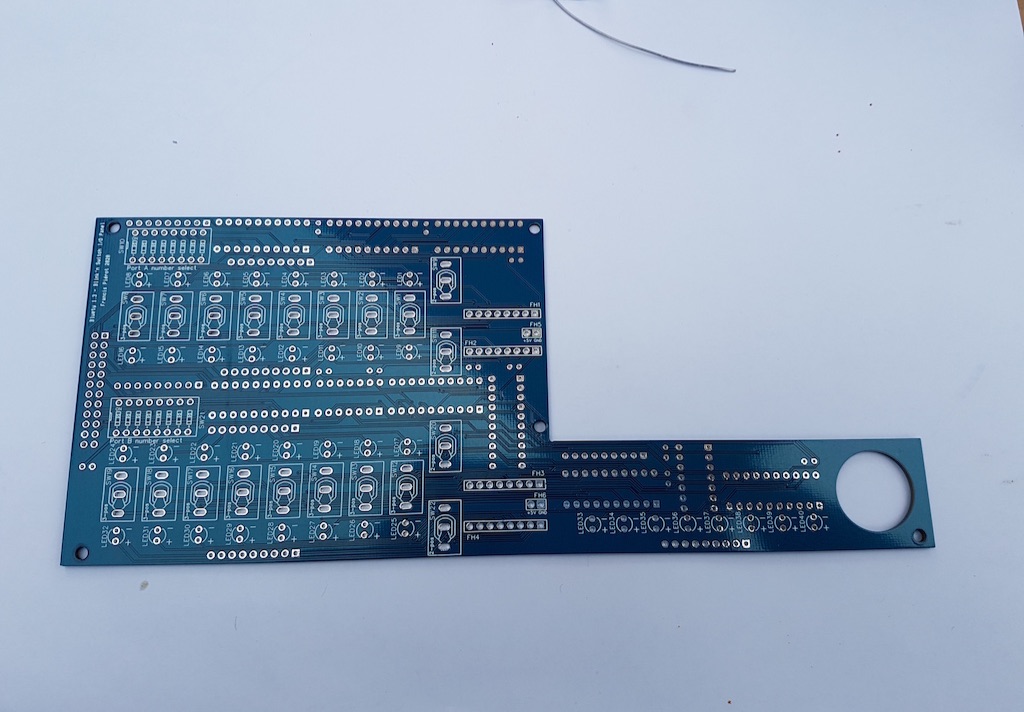

# BLUETY Bluety is a set of PCBs for a blue case featuring an RC2014 computer: - a Front panel with cutouts for buttons, LEDs, switches, I/O pin headers, a power button and an LCD display - a Back panel with cutouts for switches and connectors - a Blink'n Switch I/O PCB fixed on the front panel - a Blink'n Switch Bus Daughter PCB for connection to the RC2014 bus The blue case can be bought at [Bangood](https://www.banggood.com/250x190x110mm-Blue-Metal-Electronic-Enclosures-DIY-Power-Junction-Box-p-1067251.html?cur_warehouse=CN). ## Front panel The front panel feature holes for: - Blink'n Switch devices (switches, inputs, outputs, leds) - a 4x20 LCD screen like [this one at Banggood](https://www.banggood.com/IIC-I2C-2004-204-20-x-4-Character-LCD-Display-Screen-Module-Blue-p-908616.html?cur_warehouse=CN) - a 20mm diameter Power Button like [this one at Banggood](https://www.banggood.com/5-Pin-19mm-LED-Silver-Steel-Push-Button-Latching-Power-Switch-Waterproof-12V-p-1260617.html?cur_warehouse=CN) - LEDs for the 0x0D output port (like the status LEDs of the SC126 computer) - screw holes for Blink'n Switch PCB, LCD display, and case corners ## Back Panel The back panel feature holes for: - a 5mm diameter power input - USB input and HDMI output for keyboard/display devices like the [PiZero Terminal RC2014 board](https://www.tindie.com/products/semachthemonkey/raspberry-pi-zero-serial-terminal-for-rc2014/?pt=ac_prod_search) - Flash select and protect switches for [SC126 computer](https://www.tindie.com/products/tindiescx/sc126-z180-sbc-motherboard-kit/) - screw holes for switches, connectors and case corners ## Blink'n Switch PCB Blink'n Switch is an I/O PCB aimed at RC2014 computers and more specifically for the SC126. It is fixed on Bluety front panel and features: - two I/O ports with : - an input section with 8 LEDs, 8 on/off switches, one 8 pin header and one on/off switch for LEDs - an output section with 8 LEDs, one 8-pin header and one on/off switch for LEDs - a +5V/GND pin header - one 8 LEDs status section directly controled by output on the 0x0D I/O port (compatible with SC126 Firmwares) It has cutouts to let space for an LCD display board and the power button. ## Blink'n Switch Bus Daughter PCB This PCB is an RC2014 bus board which relays the bus signals to Blink'n Switch PCB.
Design Drawing
schematic diagram
1 /
PCB
1 /
The preview image was not generated, please save it again in the editor.
ID Name Designator Footprint Quantity
1 VDG/S-08L-H-R SW21,SW10 VDG/S-08L-H-R 2
2 22850102ANG1SYA02 FH6,FH5 HDR-TH_2P-P2.54-V-F 2
3 74HCT688 U5,U1,U8 PDIP-20 3
4 204-10SURD/S530-A3 LED19,LED24,LED23,LED22,LED21,LED20,LED28,LED18,LED17,LED32,LED31,LED25,LED26,LED27,LED30,LED29,LED7,LED5,LED4,LED3,LED2,LED1,LED16,LED15,LED14,LED13,LED12,LED11,LED10,LED9,LED8,LED6,LED37,LED40,LED39,LED38,LED33,LED34,LED35,LED36 LED-3MM/2.54 40
5 100nF C8,C7,C6,C1,C2,C3,C4,C9,C10,C11 CAP-RAD-2.54MM 10
6 74HCT273N U6,U2,U9 PDIP-20 3
7 SN74HCT245N U7,U3 PDIP-20 2
8 10K RN4,RN1,RN7 RES-ARRAY-TH_9P-P2.54-D1.0 3
9 470 RN6,RN5,RN3,RN2,RN8 RES-ARRAY-TH_9PIN-L22.82-W3.00-PITCH2.54 5
10 Header-Female FH4,FH3,FH1,FH2 HDR-TH_8P-P2.54-V 4
11 Switch 2Pos SPDT on-off Baton SW22,SW20,SW11,SW9 SW-2POS-3P-TH-13.0X8.1-BATON 4
12 SW_SPDT SW18,SW17,SW16,SW15,SW14,SW13,SW12,SW19,SW4,SW1,SW6,SW7,SW8,SW2,SW3,SW5 SW-3POS-3P-TH-13.0X8.1-BATON 16
13 74HCT32 U4,U10 PDIP-14 2
14 100uF C5 CAP-ELEC-RAD-2.54MM 1
15 HDR2X12-DAUGHTER-BLINK'N SWITCH P1 HDR-TH_24P-P2.54-V-R2-C12-S2.54 1
