CompletedDoberman ESP32-S3 CNC controller
PRODoberman ESP32-S3 CNC controller
License
：GPL 3.0
Description
Overview

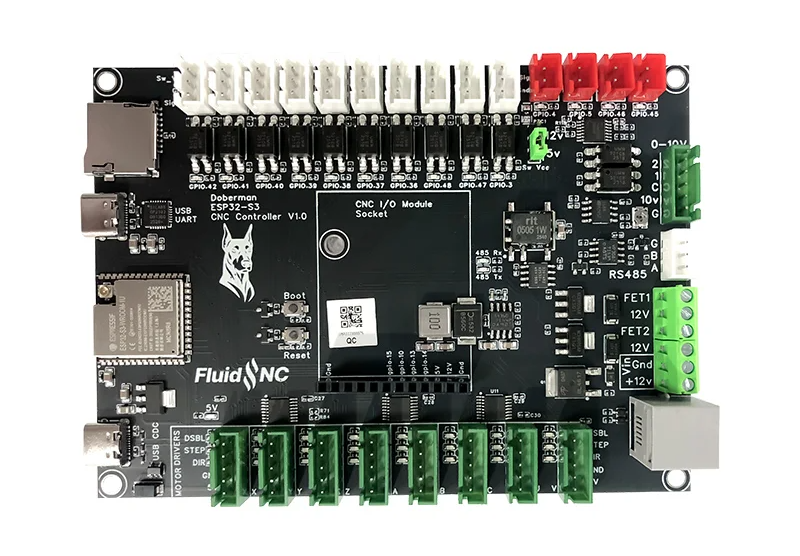

The Dobernam is a CNC controller for use with external stepper motor drivers. It is very similar to the Corgi controller, except it uses a ESP32-S3 CPU which has more I/O and a native USB connector. It also has a CNC I/O module socket in the center of the controller. This can be used to add extra inputs, outputs, MOSFETs, etc. You can also design your own if you have a special requirement.
Where to buy it
Features
- ESP32-S3 CPU
- (8) Stepper motor connectors
- (10) Input inputs for limit switches, probes, controls, etc
- (4) 5V outputs
- 0-10V Spindle interface
- Isolated RS485 Spindle interface
- (2) MOSFET outputs
- Standard CNC I/O module socket that can add inputs, outputs, MOSFETs, etc.
- RJ12 standard UART interface for pendants and display.
- Micro SD card socket
- USB C primary USB/UART interface
- Secondardary USB C connector that can be used as a UART. It also support the future use as a host for devices like joysticks and jog controllers.
