STD Pico SWR
License: GPL 3.0
Mode: Editors' pick
- 3
Update time：
2023-05-29 11:15:45
Creation time：
2020-04-25 19:42:19
Description
Simple antenna analyzer
[Home page](http://dspview.com/viewtopic.php?f=14&t=254)
Design Drawing
schematic diagram
（
1
/
）

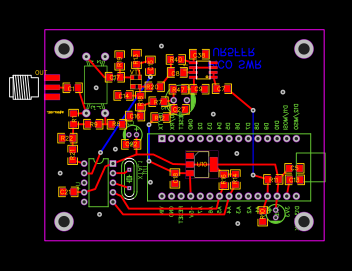

PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 33 | R12,R47 | 1206 | 2 |
| 2 | 0.1u | C27,C18 | 1206 | 2 |
| 3 | 0.1 | C21,C5,C1,C7,C9,C22,C13,C15,C16,C17 | 1206 | 10 |
| 4 | 10k | R16,R14 | 1206 | 2 |
| 5 | 25MHz | XTAL1 | HC-49U-PTH | 1 |
| 6 | AMS1117-3.3 | U10 | SOT-223-3LEAD_TABPIN2 | 1 |
| 7 | Si5351A-A-GT | U4 | DIP-10 | 1 |
| 8 | ARDUINO NANO | U11 | ARDUINO_NANO | 1 |
| 9 | 0,1 | C8 | 1206 | 1 |
| 10 | 0.01 | C38,C14 | 1206 | 2 |
| 11 | 5k6 | R40,R10 | 1206 | 2 |
| 12 | 27k | R11 | 1206 | 1 |
| 13 | 22u | C28,C11 | CAP-D5.0XF2.0 | 2 |
| 14 | 100u | C12 | CAP-D8.0XF3.5 | 1 |
| 15 | 51 | R22,R7,R19,R9,R1,R8 | 1206 | 6 |
| 16 | 680 | R13 | 1206 | 1 |
| 17 | 680* | R18 | 1206 | 1 |
| 18 | 220 | R21 | 1206 | 1 |
| 19 | 3k3 | R20 | 1206 | 1 |
| 20 | SMACONNECTOR_EDGE | OUT | SMA_EDGELAUNCH | 1 |
| 21 | Trans | T1 | TRANS | 1 |
| 22 | BF998 | VT1 | SOT143B | 1 |
| 23 | LM358 | U1 | SOIC8 | 1 |
