STD HaniMandl_V3_Platine
License: CERN Open Hardware License
Mode: Editors' pick
Cloned from Sheet_1_2023-12-19 (1).schdoc

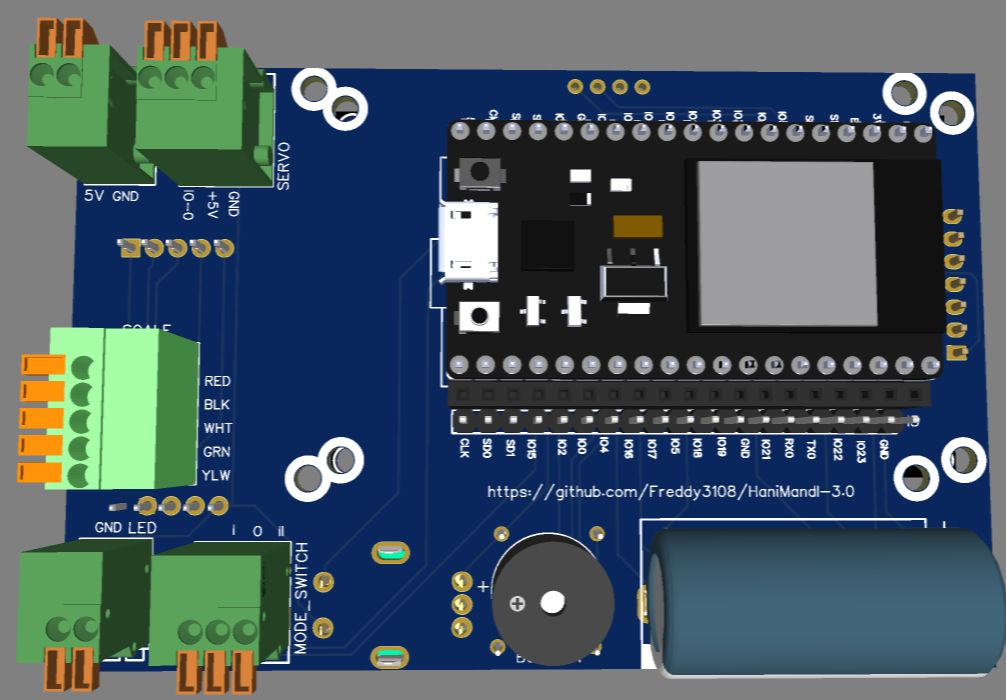

PCB for project automatic Honey filling machine:
https://github.com/Freddy3108/HaniMandl-3.0
https://www.youtube.com/watch?v=wCSN43YhlPM
source for firmware:
how to flash firmware:
ID | Name | Designator | Footprint | Quantity | Package Display | |
---|---|---|---|---|---|---|
1 | KF141V-2.54-2P | 5V,LED | CONN-TH_2P-P2.54_KF141V-2.54-2P | 2 | KF141V-2.54-2P | |
2 | 2300Hz | BUZZER1 | BUZ-TH_BD12.0-P7.60-D0.6-FD | 1 | TMB12A03 | |
3 | 4700uF | C1 | 4700UF16V | 1 | C 16V 4700UF v2 | |
4 | PM254-1-19-Z-8.5 | H2,H3,H7 | HDR-TH_19P-P2.54-V-F | 3 | PM254-1-19-Z-8.5 | |
5 | KF141V-2.54-3P | MODE_SWITCH,SERVO | CONN-TH_3P-P2.54_KF141V-2.54-3P | 2 | KF141V-2.54-3P | |
6 | 10kΩ | R1,R2 | RES-TH_BD2.4-L6.3-P10.30-D0.6 | 2 | RN 1/4W 10K F T/B A1 | |
7 | DB141V-2.54-5P | SCALE | CONN-TH_5P-P2.54_DIBO_DB141V-2.54-5P | 1 | DB141V-2.54-5P | |
8 | EC11E15244B2 | SW1 | SW-TH_EC11XXXXXXXX | 1 | EC11E15244B2 | |
9 | HX711 BREAKOUT | U2 | HX711 MY | 1 | HX711 LOAD CELL AMPLIFIER HX711 BREAKOUT COPY |
