Amoled Display Shield for Raspberry Pi

Mainly designed for Raspberry Pi CM5 (IO Board) and Pi 5, it may works for previous versions as long as it use 22pin 0.5mm fpc for mipi interface.

Why?
Because we need more high quality raspberry pi compatible display panel. Pi have mipi interface, why only release HDMI displays??. Raspberry Pi is great embedded solution, but not many real embedded and portable display selections. So I make this shield.

Panel Specifications:

• Size 3.81 Inch
• Resolution: 1080x1200px @90hz
• Amoled
• FPC 39pin 0.35mm

WARNING!
UNTESTED YET. FAILED ON PRODUCING THIS DESIGN IS YOUR OWN RISK.

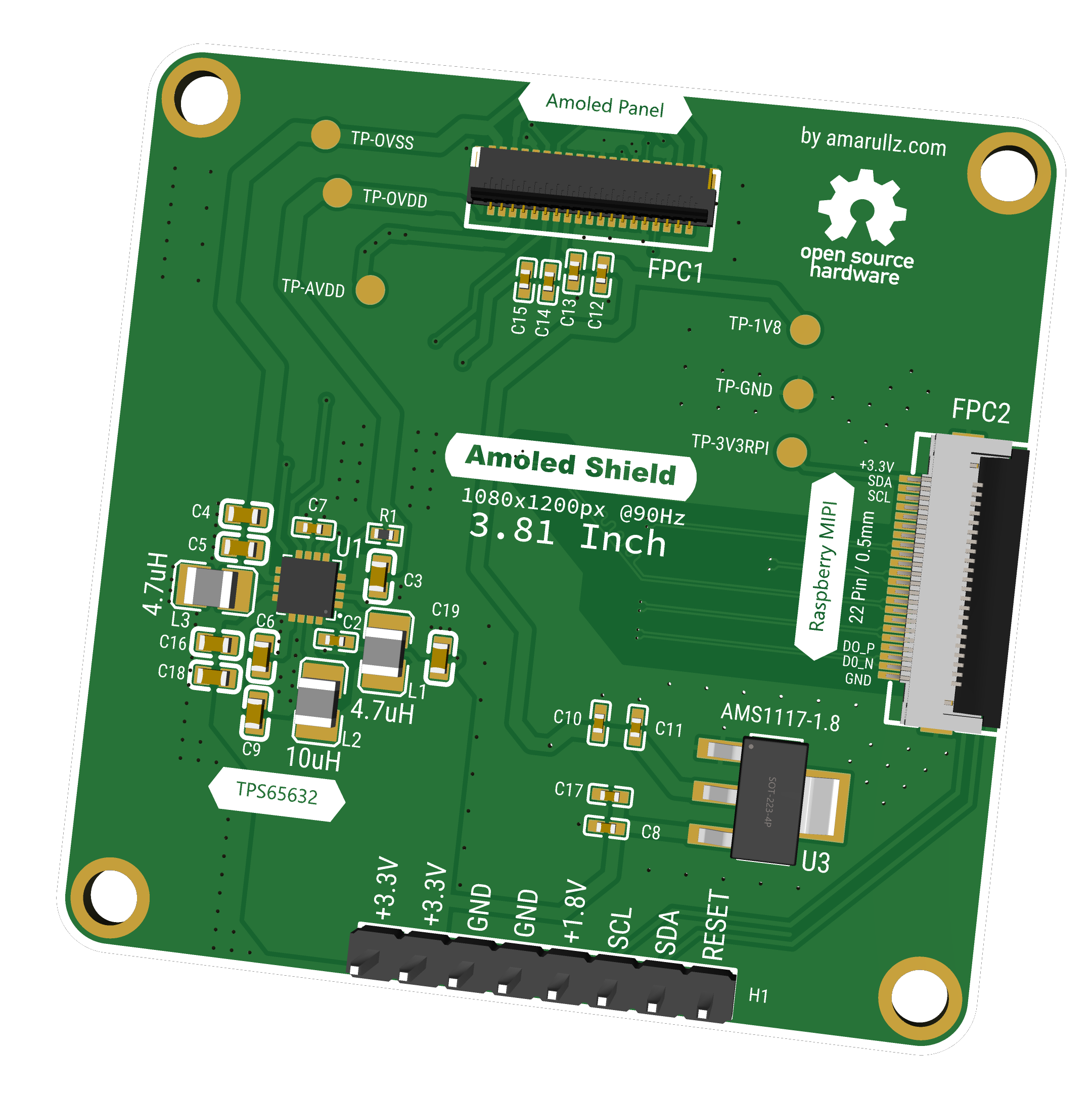

Shield Specifications:

• Amoled display power management TPS65632
• I/O Voltage regulator 1.8v
• Raspberry Pi FPC 22pin 0.5mm Mipi connector compatible
• Input power, reset gpio on 2.54mm pin header connector
• Test point
• Small dimension at 50x50mm
• 4 Layers
