STD BMS ACID BATTERY
No Profile
License: Public Domain
Description
Battery Management System for 12V acid battery.
Design Drawing

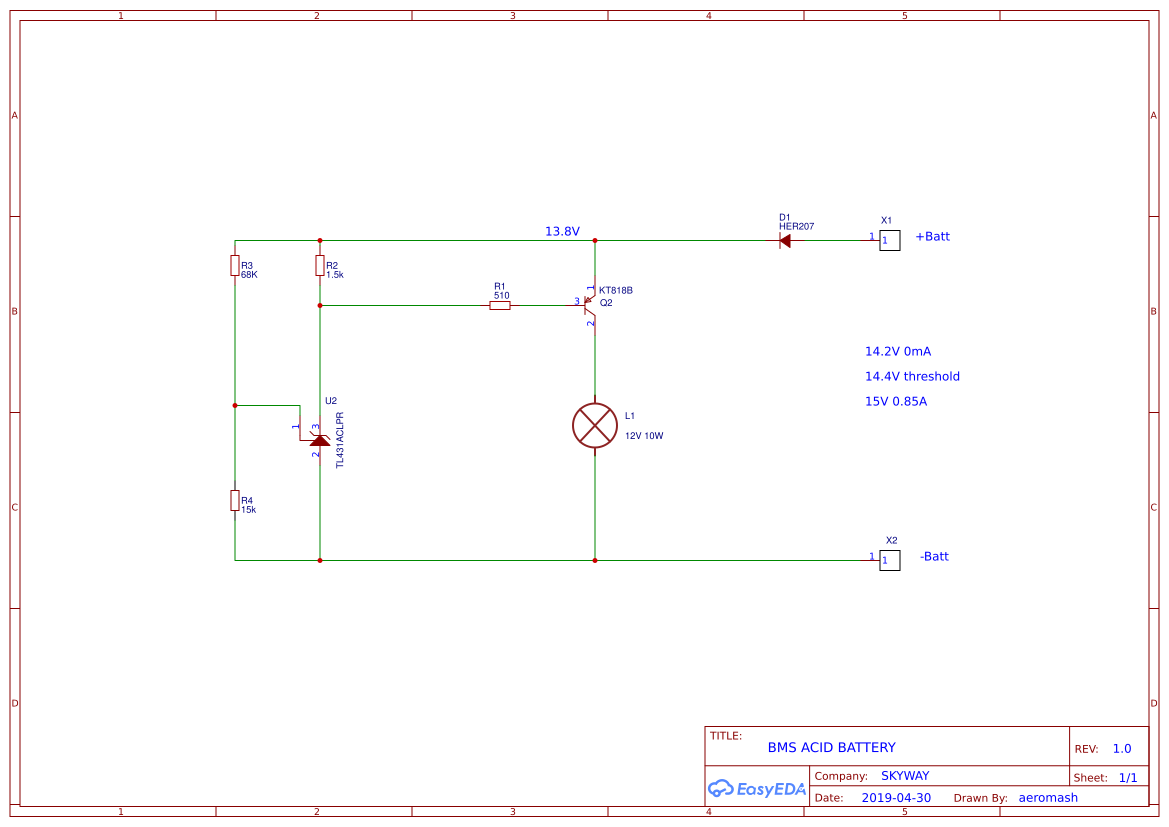

schematic diagram
（
1
/
）
PCB
（
1
/
）
Empty
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | HER207 | D1 | DO-15 | 1 |
| 2 | 12V 10W | L1 | 2PIN | 1 |
| 3 | 510 | R1 | AXIAL-0.2-MFR-12 | 1 |
| 4 | 1.5k | R2 | AXIAL-0.3 | 1 |
| 5 | 68K | R3 | AXIAL-0.3 | 1 |
| 6 | 15k | R4 | AXIAL-0.3 | 1 |
| 7 | KT818B | U1 | TO-220-3-FLAT | 1 |
| 8 | TL431ACLPR | U2 | TO-92(TO-92-3) | 1 |
| 9 | AEROMASH | X1,X2 | AEROMASH | 2 |
