Description
A simple card to easily connect a 5V barrel jack power supply to a breadboard power rail.
Features:
- female barrel jack (diameter in: 2mm, diameter out 6mm)
- slide switch to allow current to flow to the breadboard
- power LED (on when circuit has power)
- ON LED (on when power switch is on)

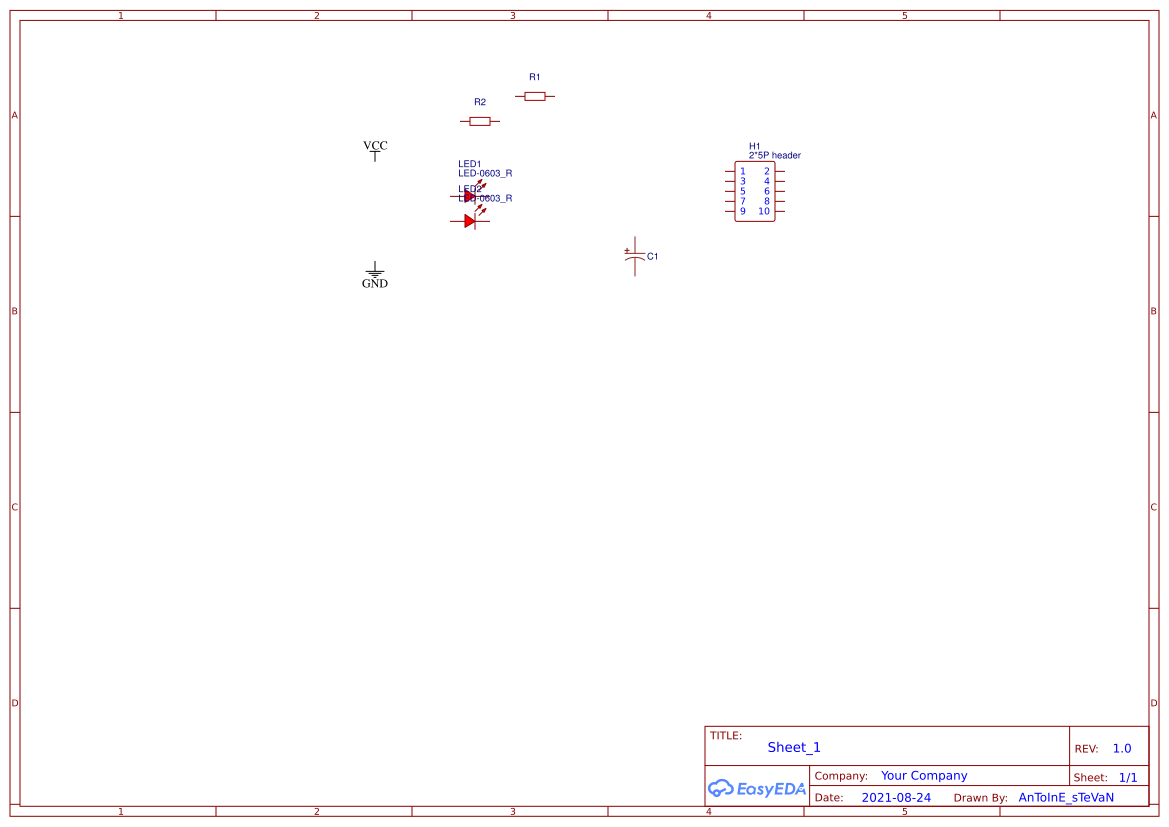

Design Drawing
The preview image was not generated, please save it again in the editor.BOM
Bom empty
