OngoingSecurity Alarm circuit
STDSecurity Alarm circuit
598
0
0
0
Mode:Full
License
：Public Domain
Creation time:2019-10-22 18:13:52Update time:2019-11-05 18:46:45
Description
Design Drawing
schematic diagram
Preview
Sheet_2Open in Editor

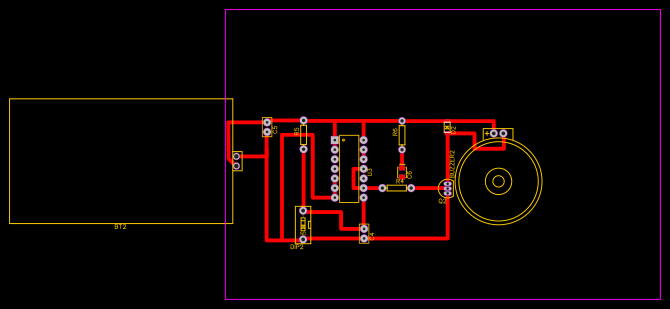

PCB
Preview
PCB Security alarmOpen in Editor
BOM
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 1N4148W | D2 | SOD-123_2PIN-L3.85-W1.70-L | 1 |
| 2 | No.52Section side by side battery box | BT2 | 59MMX33MM | 1 |
| 3 | MC14001BCPG | U3 | DIP14 | 1 |
| 4 | 2N3904 | Q2 | TO-92(TO-92-3) | 1 |
| 5 | 4.7k | R4 | AXIAL-0.3 | 1 |
