Description
Properties:

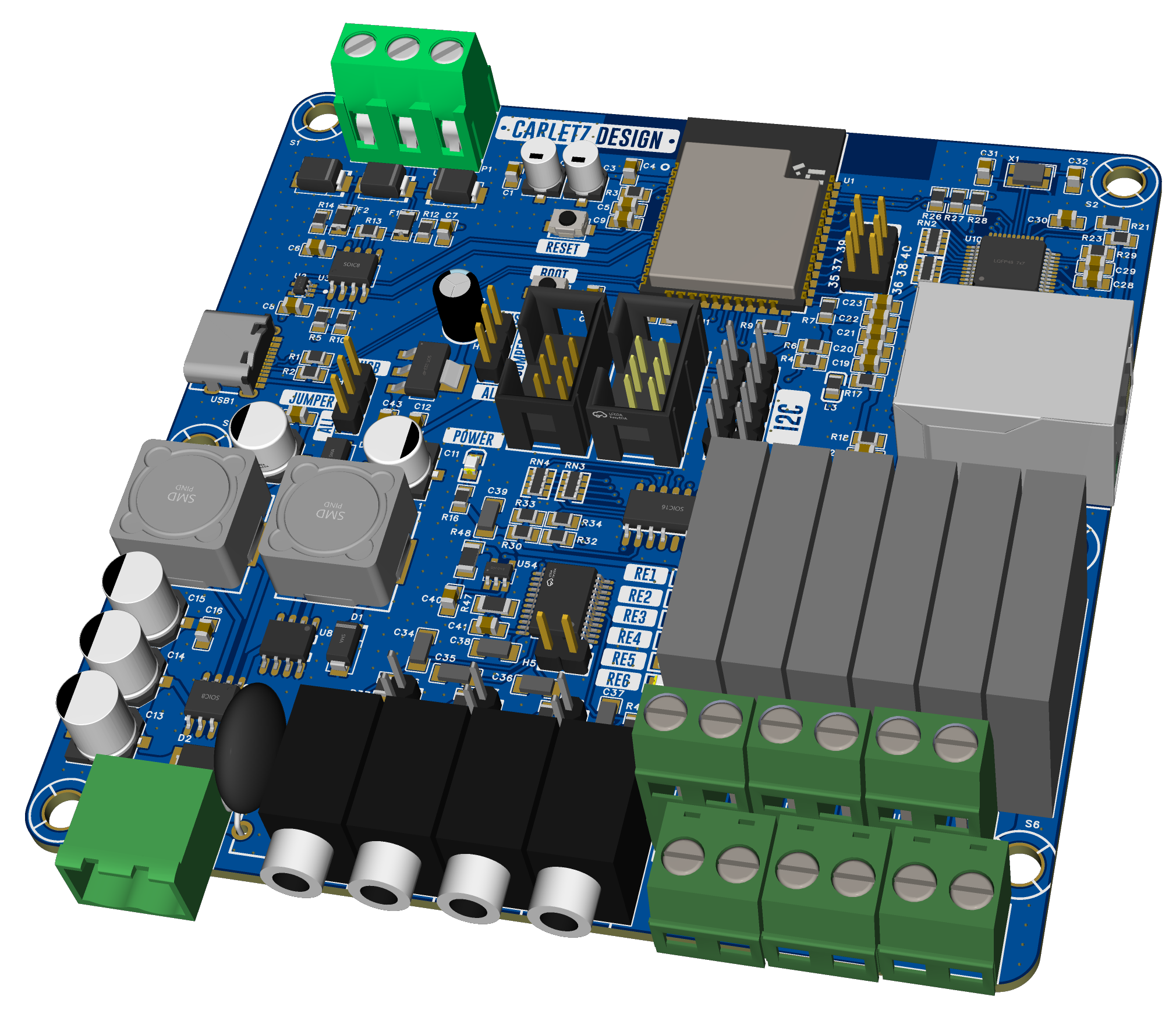

This project incorporates an ESP32-S3 with a W5500 module for ethernet connection, 6 relays with 2A capacity, 4 connections for current clamps, an RS485 interface and two i2c sockets for connecting other boards or displays.
Power supply:
Power can be supplied by 9-24 VDC.
Expansion board:
The input and output board is connected with a 6-pin flat cable and allows the use of 14 inputs and 12 outputs.
Logic:
My aim is to program the board using ESPHome software.
