IoT_1ch_dimmer_LBv2_with_power_monitor

Ongoing

STD IoT_1ch_dimmer_LBv2_with_power_monitor

License:

Mode:

Editors' pick

Cloned from IoT_1ch_dimmer_with_PM

1.8k
0
0
1

Update time： 2022-02-22 08:36:30

Creation time： 2019-11-19 00:49:44

Description

- Trailing edge MOSFET dimmer for ESP8266 WiFi logic board - Power monitor (Voltage, current, power, power factor, mains frequency) - 3.3V isolated power supply for WiFi logic board - Temperature monitoring - 100W@120V / 200W@230V in a sealed enclosure

Design Drawing

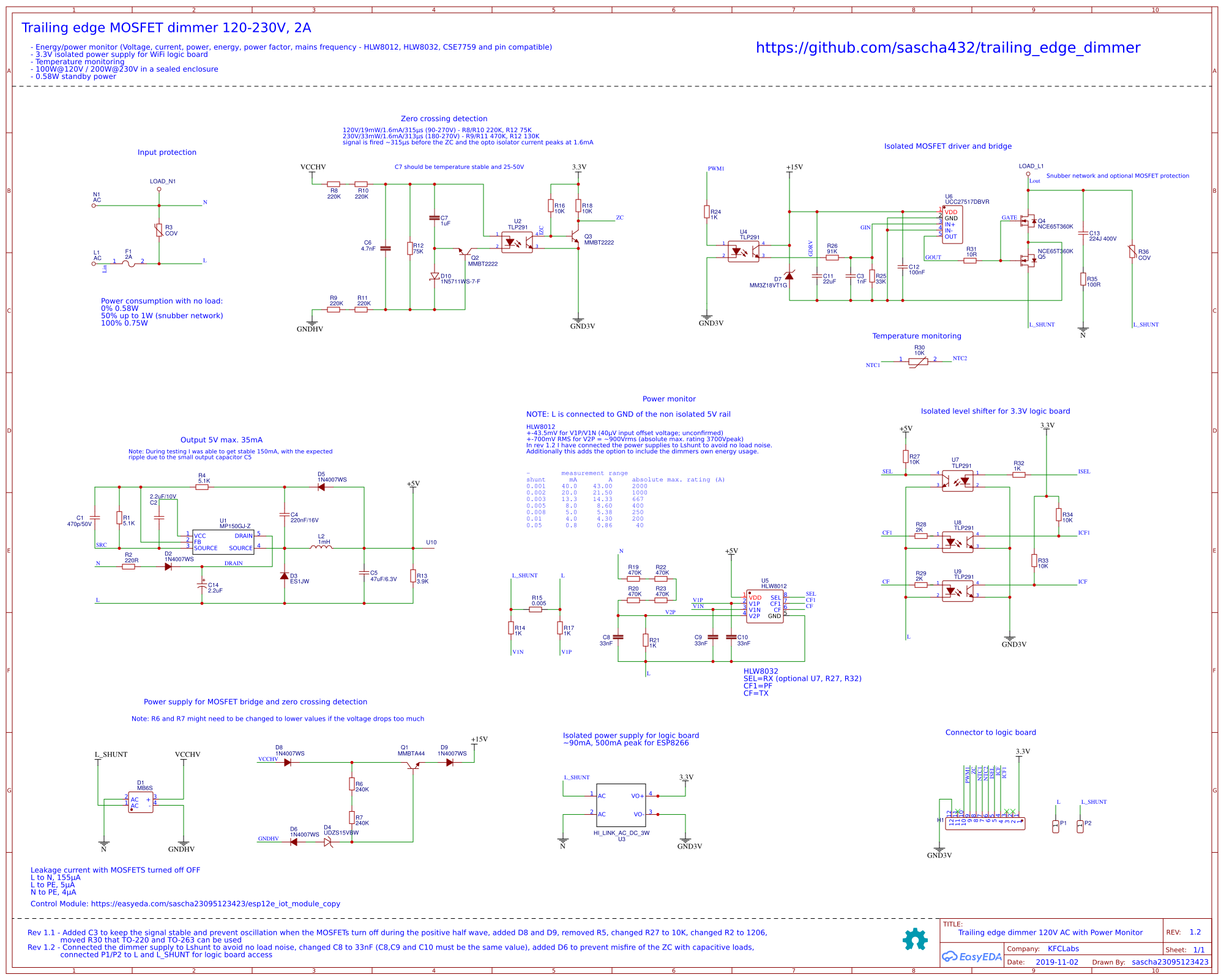

schematic diagram

（ 1 / ）

1CH Dimmer Module
Open in Editor

PCB

（ 1 / ）

1CH Dimmer Module
Open in Editor

The preview image was not generated, please save it again in the editor.

BOM

BOM download Purchase Parts

ID	Name	Designator	Footprint	Quantity
1	470p/50V	C1	0805	1
2	2.2uF/10V	C2	0805	1
3	1nF	C3	0805	1
4	220nF/16V	C4	0805	1
5	47uF/6.3V	C5	0805	1
6	4.7nF	C6	0805	1
7	1uF	C7	0805	1
8	33nF	C8,C9,C10	0805	3
9	22uF	C11	0805	1
10	100nF	C12	0805	1
11	224J 400V	C13	CAP-CBB-12.0*6.0	1
12	2.2uF	C14	CAP-SMD_BD6.3-L6.6-W6.6-FD	1
13	MB6S	D1	MBS-4.9X4.0	1
14	1N4007WS	D2,D5,D6,D8,D9	SOD-323_L1.8-W1.3-LS2.5-RD	5
15	ES1JW	D3	SOD-123F_L2.8-W1.8-LS3.7-RD	1
16	UDZS15VBW	D4	SOD-323_L1.8-W1.3-LS2.5-RD	1
17	MM3Z18VT1G	D7	SOD-323_L1.8-W1.3-LS2.5-RD	1
18	1N5711WS-7-F	D10	SOD-323_L1.8-W1.3-LS2.5-RD	1
19	2A	F1	2410 FUSE	1
20	H1	H1	SIP-2.54MM-12P-CJT-H8.54	1
21	AC	L1,LOAD_N1,N1	CON_PAD_ROUND_1.02MM	3
