Description
This is a voltage level translator for example for UART, two inputs and two outputs, using TI TXU0204 chip.
The board size is 14mm × 14mm, and the through hole pitch is 2mm.
There are two 3mm diameter mounting hole slots, at 12mm center-to-center distance. Maximum mounting stud and head diameter is about 6mm.
On the topside, there are two footprints for 100nF = 0.1µF supply bypass capacitors in 0805 or 0603 footprint.

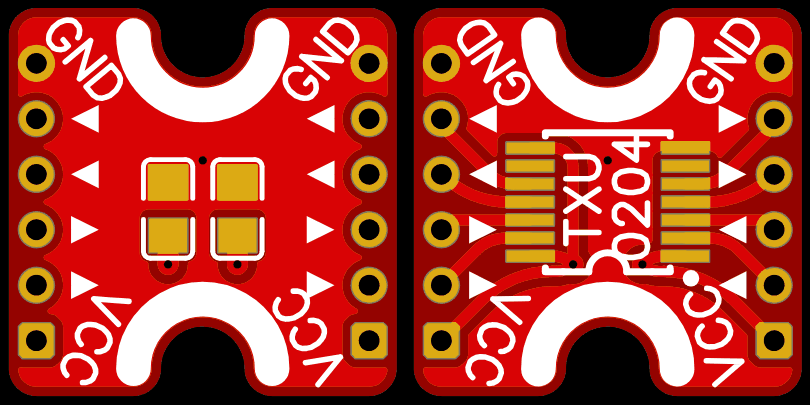

Board top and bottom:
Design Drawing
