STD tiny84/ads1225

License: GPL 3.0

Mode: Editors' pick

  • 164
  • 0
  • 0
Update time: 2022-05-20 17:55:29
Creation time: 2022-05-14 19:08:03
Description

балавство

Design Drawing
schematic diagram
1 /

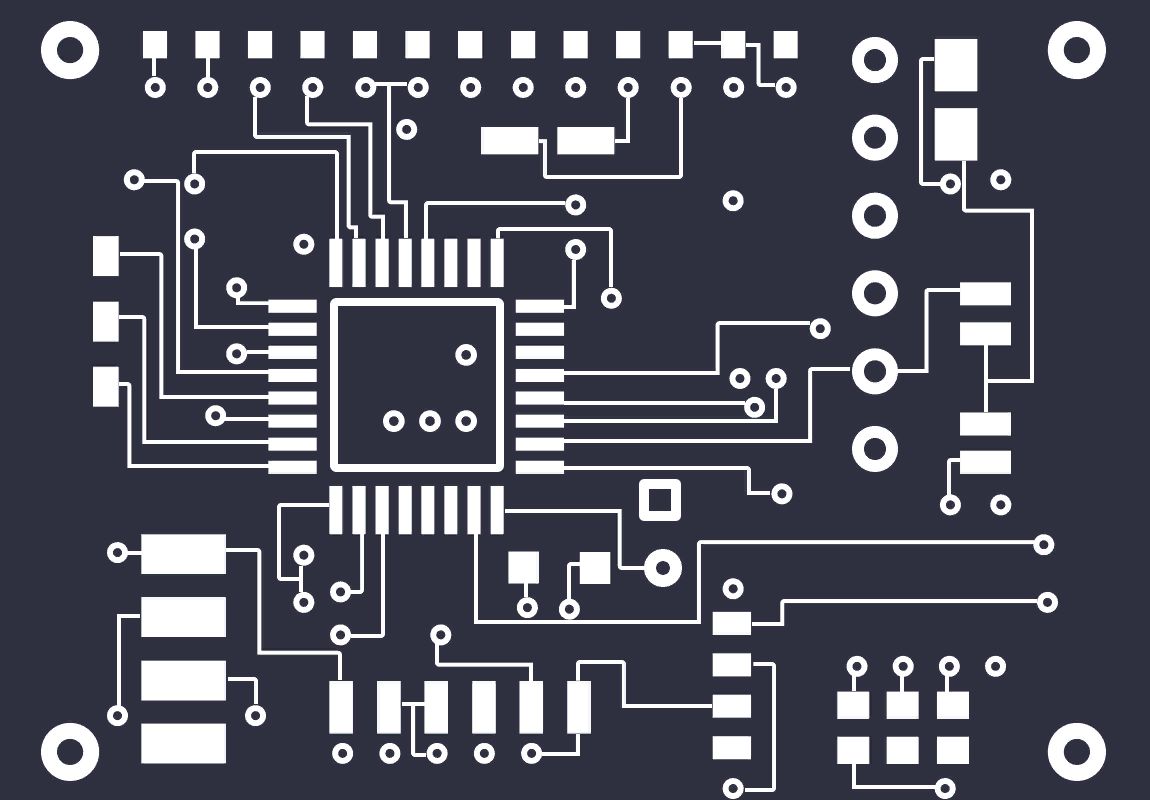

PCB
1 /
The preview image was not generated, please save it again in the editor.
ID Name Designator Footprint Quantity
1 ADS1225IRGVT AD HVQFN-16_L4.0-W4.0-P0.65-TL-EP2.2 1
2 0 ADC1+,ADC1-,ADC2+,ADC2- R0402 4
3 AREF1,VCCREF1 R0402 2
4 100n C1,C2,C3,C5,C6,C8 C0603 6
5 LED-0603_R LD1,LD2 LED0603_RED 2
6 1kΩ LEVEL1,LEVEL2,LEVEL3,LEVEL4 R0402 4
7 5kΩ LEVELR R0402 1
8 + R1,R2 R2512= 2
9 - R3,R4 R2512= 2
10 0.1 REFP/REFN,REFP/REFN1 C0603 2
11 800 RL R0402 1
12 204-221ST SW5 CHS-04TA 1
13 ATTINY84-20MU_C1340843 T84 QFN-20_L4.0-W4.0-P0.50-BL-EP2.6 1
14 SM06B-SRSS-TB(LF)(SN) U3 CONN-SMD_SM06B-SRSS-TB-LF-SN 1
