OngoingSimone USB_HUB
PROSimone USB_HUB
License
：OpenAtom OHL 1.0
Description

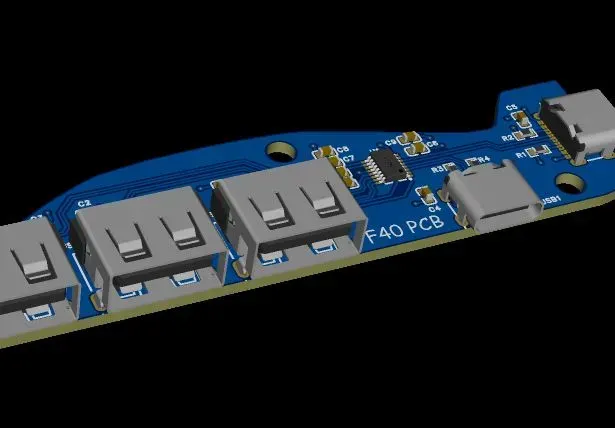

This is a prety small USB HUB shaped like a F40. It have 1 usb C to connect it to your PC and 1 usb C and 3 USB A where u can connect any of your devices. It is made to use every USB with data transfer and not only like a charger so you can connect yuor smmartphone, racing wheel, etc, you can design your custom case or wait until i upload mine.
I had the idea to build this for my necessity to have more usb devices connected to my pc in the same moment but i also wanted a shape that matched my style so i made it look like an F40
Design Drawing
The preview image was not generated, please save it again in the editor.BOM
Bom empty
