Std edition MSX EPROM CARTRIDGE MSXMAKERS DIP SWITCH
Profile：Standard MSX Game Cartridge to use some ROM, EEPROM & Flash chips
License: Public Domain
Project source: Cloned from MSX EPROM CARTRIDGE MSXMAKERS DIP SWITCH
Description
This PCB lets you load a ROM file (up to 4 16K programs) in an MSX computer using EEPROM parts like the 27C128-27C512 or use a flash memory like the W27C215.
More info at:
[https://msxmakers.design.blog/proyectos/cartucho-msx-eeprom-64kb/](https://msxmakers.design.blog/proyectos/cartucho-msx-eeprom-64kb/)
Design Drawing

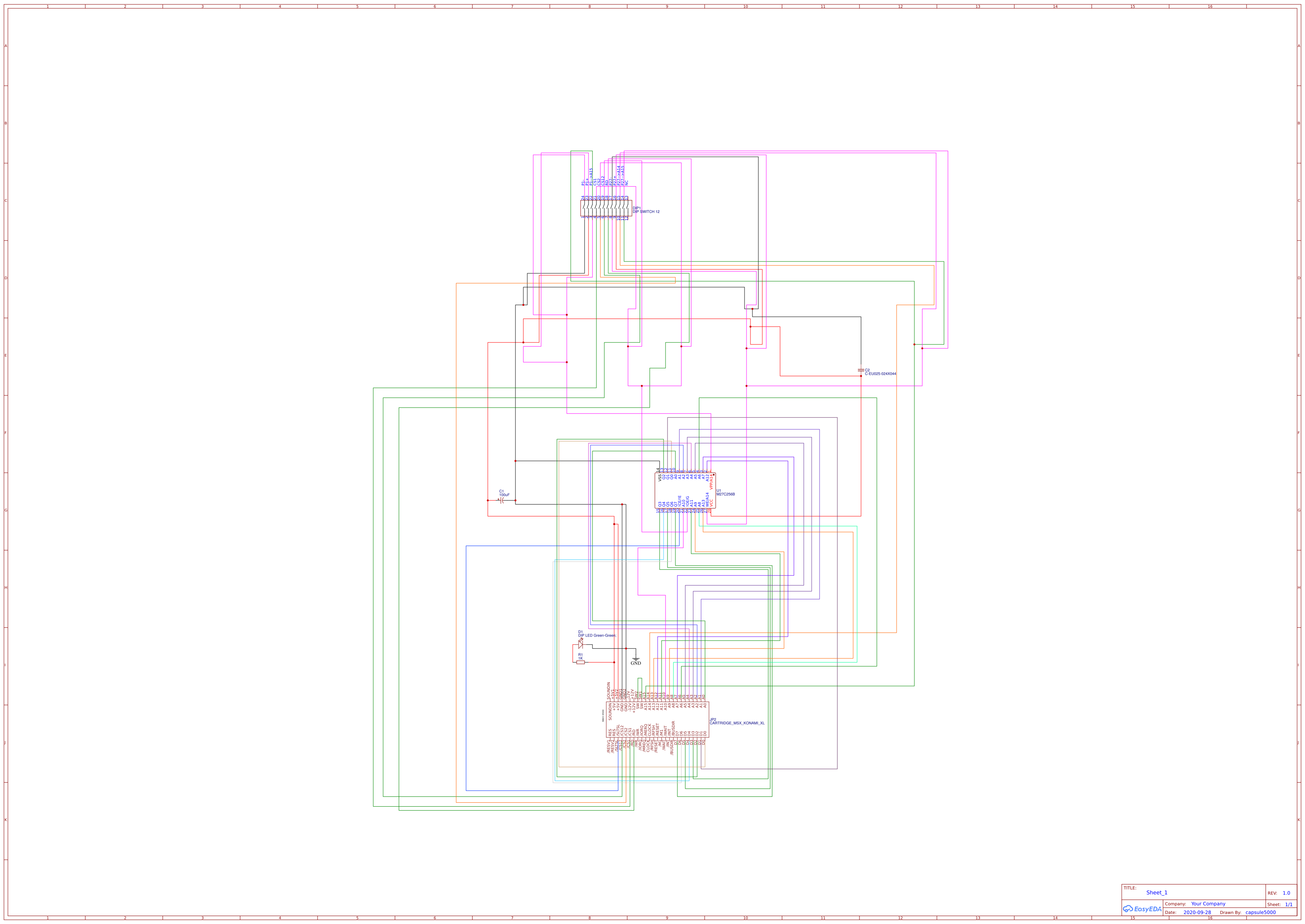

schematic diagram
（
1
/
）
PCB
（
1
/
）
Empty
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 1K | R1 | RES-TH_BD2.5-L6.5-P10.50-D0.6 | 1 |
| 2 | M27C256B | U1 | DIP-28_L37.0-W13.8-P2.54-LS15.8-BL | 1 |
| 3 | 100uF | C1 | CAP-TH_BD5.0-P2.00-D0.8-FD | 1 |
| 4 | C-EU025-024X044 | C2 | C025-024X044 | 1 |
| 5 | DIP SWITCH 12 | DIP1 | DIP_SWITCH-12-2.54MM | 1 |
| 6 | CARTRIDGE_MSX_KONAMI_XL | JP2 | CARTRIDGE_MSX_XL | 1 |
| 7 | DIP LED Green-Green; | D1 | LED2-2.54-D3.0MM | 1 |
