Std EditionLab PSU 0-35V 0-3A

License:

Published Time:2017-08-30 05:47:57
  • 2.9k
  • 0
  • 6
Description

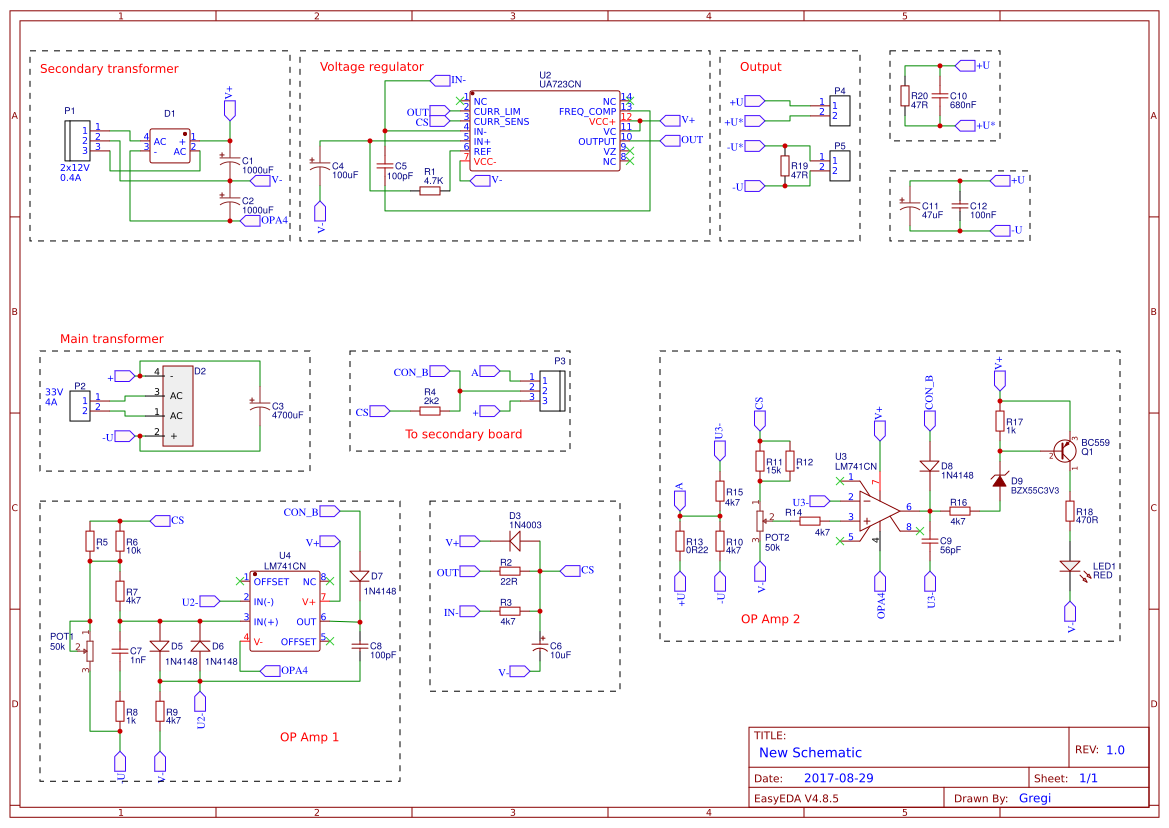

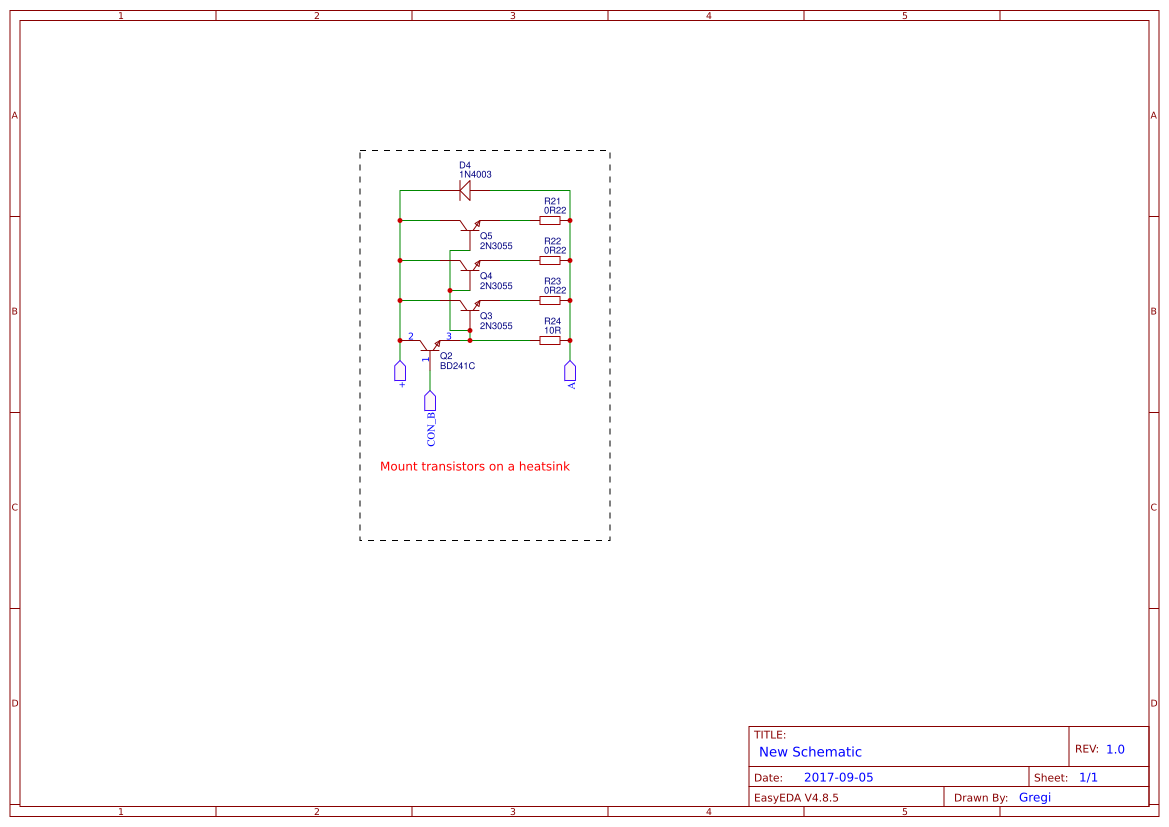

Still in progress.... need to doublecheck schematic THIS IS NOT MY DESIGN, its very old from a magazine 20 years ago, and its modified elektor schematic from 1982 i think Description soon

ERROR IN THE SCHEMATIC... DON'T MAKE IT UNTIL I CHANGE IT IN A FEW DAYS. SORRY FOR THE INCONVENIENCE. I WILL POST WHEN THE SCHEMATIC IS REVISED.

Documents

PSU 0-35V 0-3A main board

Open in editor

PSU 0-35V 0-3A secondary board

Open in editor

PSU 0-35V 0-3A secondary board

Open in editor

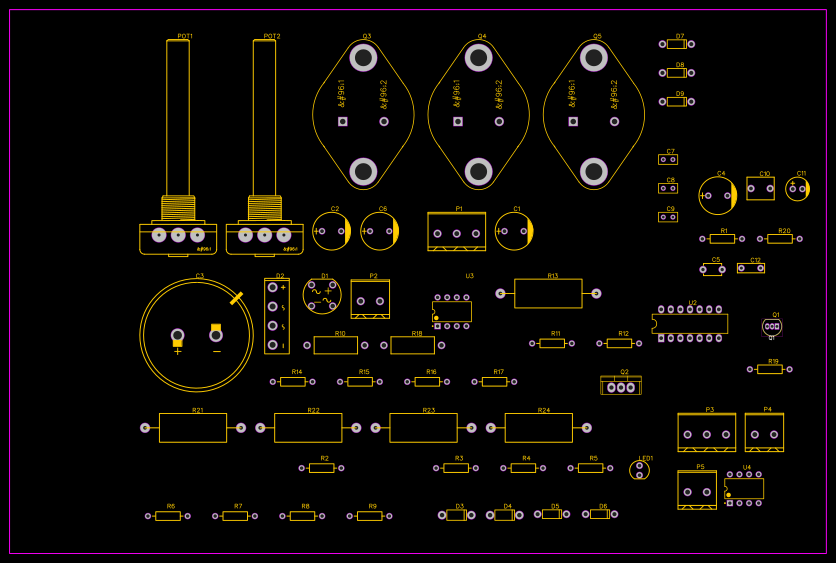

PCB_Lab PSU 0-35V 0-3A

Open in editor
ID Name Designator Footprint Quantity
1 10uF C6 CAP-D10.0XF5.0 1
2 1nF C7 RAD-0.1 1
3 100pF C8 RAD-0.1 1
4 56pF C9 RAD-0.1 1
5 1N4003 D3,D4 DO-41 2
6 4k7 R3,R7,R9,R14,R16,R15 RES-TH_BD2.2-L6.5-P10.50-D0.6 6
7 22R R2 RES-TH_BD2.2-L6.5-P10.50-D0.6 1
8 * R5,R12 RES-TH_BD2.2-L6.5-P10.50-D0.6 2
9 10k R6 RES-TH_BD2.2-L6.5-P10.50-D0.6 1
10 1k R8,R17 RES-TH_BD2.2-L6.5-P10.50-D0.6 2
11 4k7 R10 AXIAL-0.6 1
12 15k R11 RES-TH_BD2.2-L6.5-P10.50-D0.6 1
13 0R22 R13,R21,R22,R23 AXIAL-1.0 4
14 470R R18 AXIAL-0.6 1
15 LM741CN U3,U4 DIP-8_L9.8-W6.6-P2.54-LS7.6-BL 2
16 1N4148 D5,D6,D7,D8 DO-35 4
17 50k POT1,POT2 POTH_1 2
18 BZX55C3V3 D9 DO-35 1
19 RED LED1 LED-5MM/2.54 1
20 2k2 R4 RES-TH_BD2.2-L6.5-P10.50-D0.6 1
21 WJ500V-5.08-2P-14-00A P2,P5,P4 CONN-TH_2P-P5.00_WJ500V-5.08-2P 3
22 100uF C4 CAP-TH_BD10.0-P5.00-D1.0-FD 1
23 680nF C10 CAP-TH_L7.2-W6.0-P5.00-D0.6 1
24 47uF C11 CAP-TH_BD6.3-P2.50-D1.0-FD 1
25 WJ500V-5.08-3P-14-00A P1,P3 CONN-TH_3P-P5.00_WJ500V-5.08-3P 2
26 100pF C5 CAP-TH_L4.8-W3.2-P5.08-D0.5 1
27 4.7K R1 RES-TH_BD2.2-L6.5-P10.50-D0.6 1
28 W04G-E4/51 D1 DIO-BG-TH_WOG-1 1
29 UA723CN U2 DIP-14_L20.0-W7.6-P2.54-LS7.6-BL 1
30 100nF C12 CAP-TH_L7.2-W2.5-P5.00-D0.5 1
31 47R R19,R20 RES-TH_BD2.2-L6.5-P10.50-D0.6 2
32 KBL608 D2 DIO-BG-TH_KBL608 1
33 BC559 Q1 TO-92_INLINE 1
34 1000uF C1,C2 CAP-TH_BD10.0-P5.00-D1.0-FD 2
35 4700uF C3 CAP-TH_BD30.0-P10.00-D2.3-FD 1
36 BD241C Q2 TO-220 1
37 2N3055 Q5,Q3,Q4 11-01 3
38 10R R24 AXIAL-1.0 1

Unfold
