STD Dual USB Charger - LM2596S
License: Public Domain
Mode: Editors' pick
Cloned from USB_sharing_switch_v2

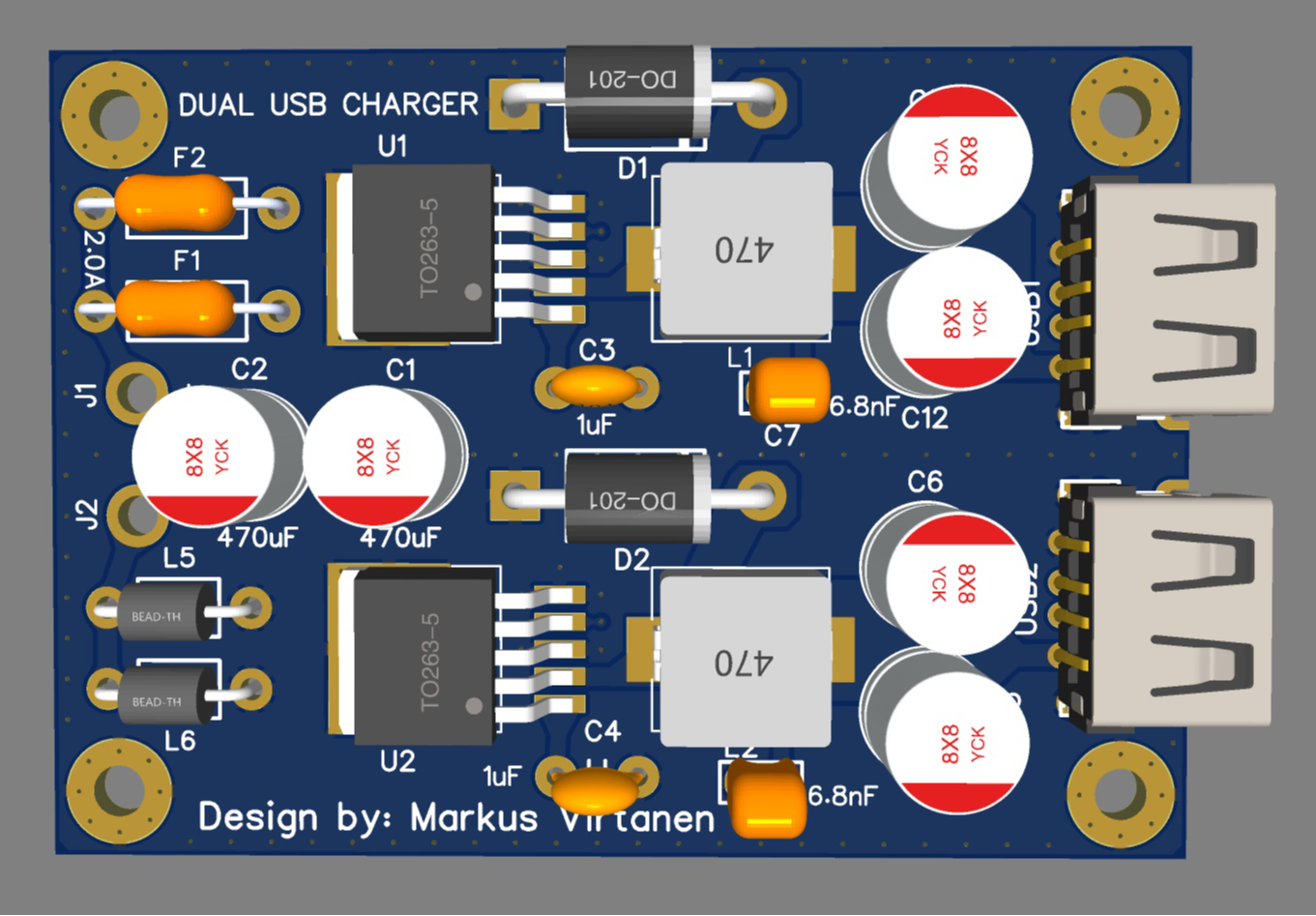

Dual USB 2.0 Charger
**INPUT VOLTAGE:** 7V - 25V (limited by input capacitor voltage rating) **OUTPUT VOLTAGE** 5V / 3A per USB port **Based on regulator:** [LM2596S-5.0](https://www.lcsc.com/product-detail/DC-DC-Converters_UMW-Youtai-Semiconductor-Co-Ltd-LM2596S-5-0_C347421.html)ID | Name | Designator | Footprint | Quantity |
---|---|---|---|---|
1 | 470uF | C1,C2 | CAP-TH_BD8.0-P3.50-D0.6-FD | 2 |
2 | 1uF | C3,C4 | CAP-TH_L5.0-W2.5-P5.08-D0.7 | 2 |
3 | 100uF | C5,C6 | CAP-TH_BD8.0-P3.50-D1.0-FD | 2 |
4 | 6.8nF | C7,C8 | CONDENSER P2.54 | 2 |
5 | 220uF | C12,C13 | CAP-TH_BD8.0-P3.50-D0.6-FD | 2 |
6 | 100nF | C14,C15 | C0603 | 2 |
7 | 100nF | C16,C17 | C1206 | 2 |
8 | 330nF | C18,C19 | C1206 | 2 |
9 | 10uF | C20,C21 | C1206 | 2 |
10 | 1N5822 | D1,D2 | DO-201AD_BD5.3-L8.4-P12.50-D1.4-FD | 2 |
11 | 0473002.YRT1L | F1,F2 | FUSE-TH_BD3.0-L7.2-P11.20-D0.6 | 2 |
12 | PAD | J1,J2 | PADPAD | 2 |
13 | 47uH | L1,L2 | IND-SMD_L10.8-W10.0_SLO1040H | 2 |
14 | 50Ω @ 100MHz | L5,L6 | BEAD-TH_BD3.5-L4.7-P8.70-D0.7 | 2 |
15 | LM2596S-5.0 | U1,U2 | TO-263-5_L10.2-W8.9-P1.70-BR | 2 |
16 | RH7901A | U3,U4 | SOT-23-5_L3.0-W1.7-P0.95-LS2.8-BR | 2 |
17 | A/F90degree Aparagraph 10Four feet without curling ironPBTWhite plastic6.8 | USB1,USB2 | USB-A-TH_USB-M-24 | 2 |
